Sunroof Panel/Window Guide Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

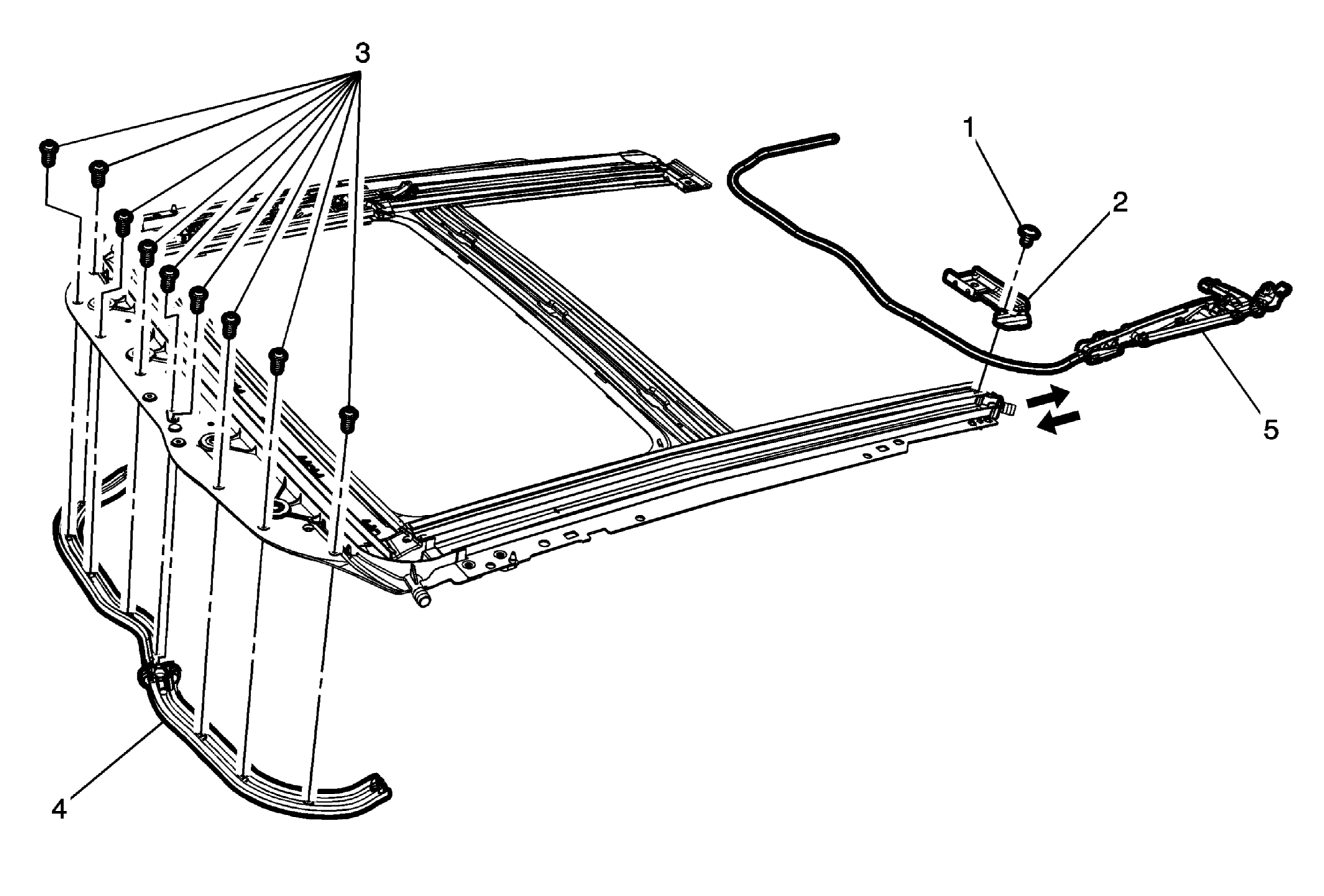

Fig 1: Sunroof Housing Assembly Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the sunroof housing drain gutter. Refer to Sunroof Housing Drain Gutter Replacement . Remove the sunroof window. Refer to Sunroof Window Replacement . Remove the sunroof air deflector cover. Refer to Sunroof Air Deflector Cover Replacement . Remove the sunroof air deflector. Refer to Sunroof Air Deflector Replacement . Remove the sunroof sunshade. Refer to Sunroof Sunshade Replacement . Remove the sunroof motor. Refer to Sunroof Window Motor Replacement . Disconnect the front and rear drain hoses.
1	Sunroof Housing Rear Support Screw CAUTION: Refer to Fastener Caution .
2	Sunroof Housing Rear Support
3	Sunroof Housing Assembly Screw (Qty: 9)
4	Sunroof Housing Assembly
5	Sunroof Panel Window Guide Assembly Procedure Wipe the perimeter of the frame area with a clean cloth. Slide the sunroof panel window guide cable forward in order to disengage from the sunroof frame while sliding the sunroof panel window guide rearward in order to disengage from the sunroof frame. When installing the sunroof panel window guide assembly, ensure the routing of the end of the cable is installed through the frame access holes and into the other guide.
