Windshield Washer Solvent Container Level Sensor Replacement
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
|
Preliminary Procedures
- Remove the left front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement (Left Side)
.
- Disconnect the electrical connector from the windshield washer solvent level sensor.
- Place a clean suitable drain pan under the windshield washer solvent container to secure the windshield washer solvent when the level sensor and seal are removed.
|

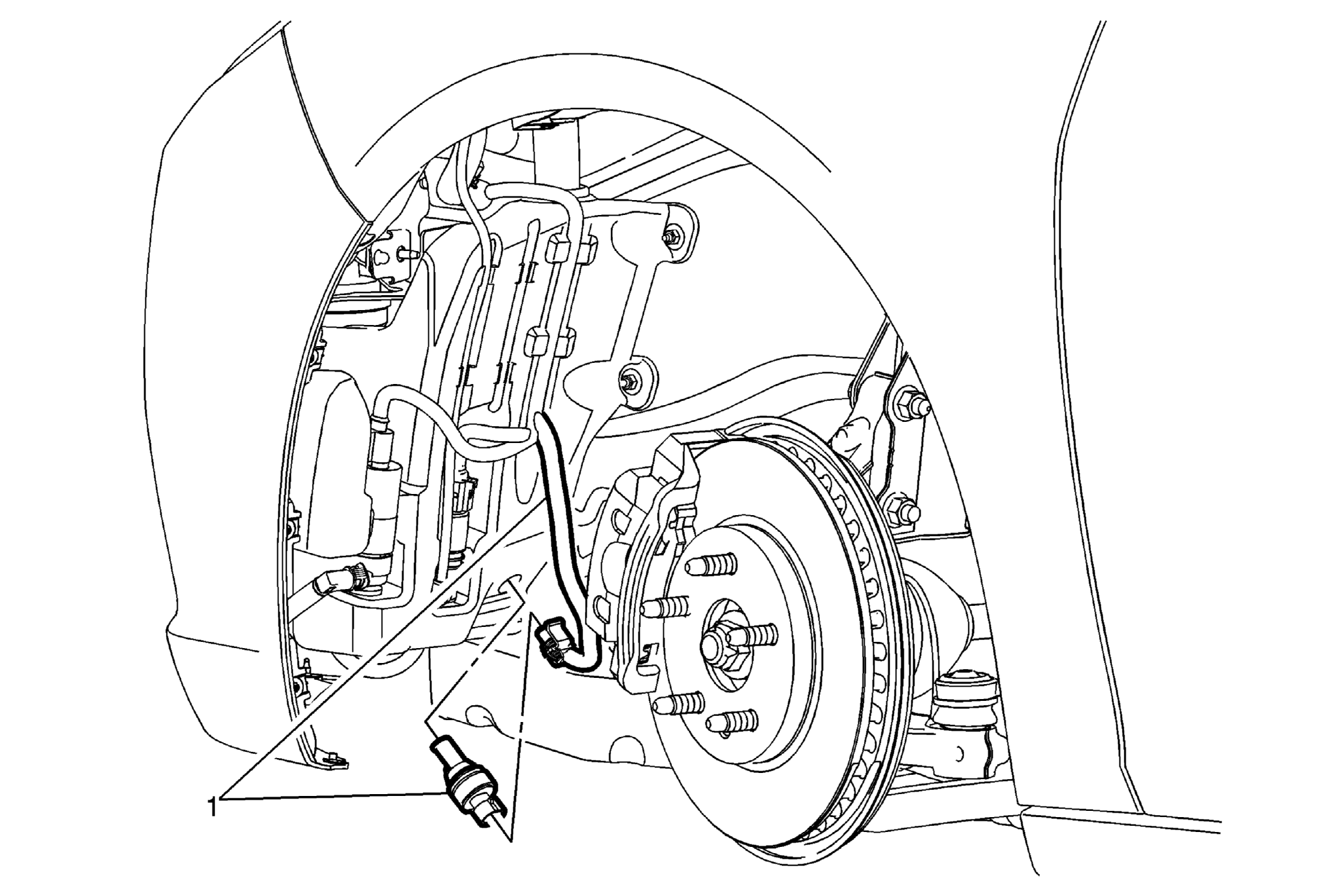

| 1 |
Windshield Washer Solvent Level Sensor Procedure
- Using two flat-bladed tools, place the ends of the flat blades under each side of the windshield washer solvent level sensor seal.
- Twisting in opposite directions, pry outward, the level sensor from the washer solvent container.
- Remove and discard the windshield washer level sensor grommet.
|
