Radiator Support Bracket Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

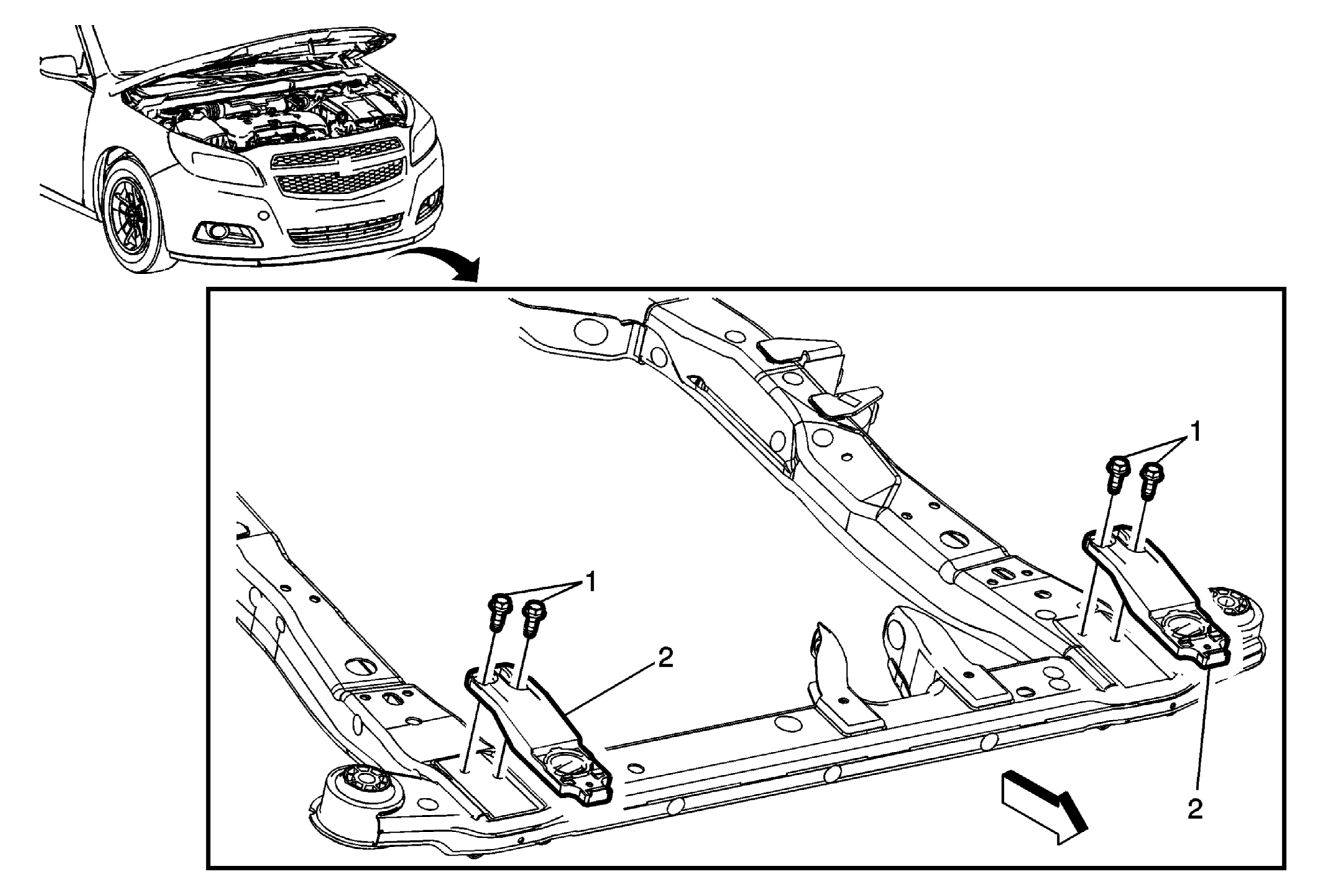

Fig 1: Radiator Support Bracket (LCV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the radiator air side baffle and deflector retainers from the radiator lower bracket. Support the radiator assembly.
1	Radiator Lower Bracket Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Radiator Lower Bracket (Qty: 2)

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the radiator air side baffle and deflector retainers from the radiator lower bracket.
Support the radiator assembly.

Radiator Lower Bracket Fastener (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Radiator Lower Bracket (Qty: 2)
