Garage Door Opener Transmitter Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

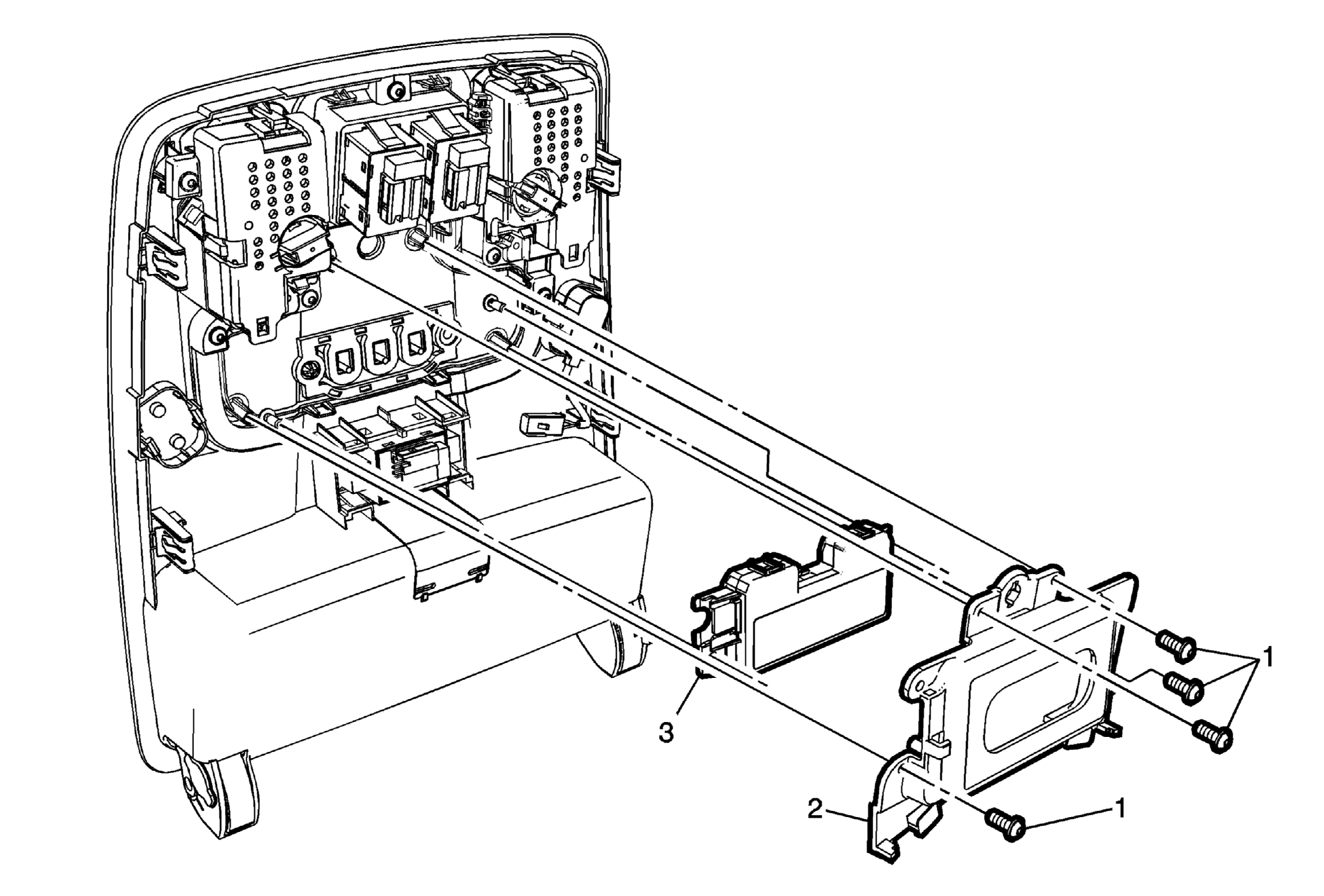

Fig 1: Garage Door Opener Transmitter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the roof console. Refer to Roof Console Replacement .
1	Garage Door Opener Transmitter Bolts (Qty: 4) CAUTION: Refer to Fastener Caution
2	Garage Door Opener Transmitter Bracket
3	Garage Door Opener Transmitter Procedure Disconnect the electrical connector. Transfer components, as necessary. Refer to Control Module References for programming and set-up procedures.
