Remote Control Door Lock Receiver Antenna Replacement (Without HP6)

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

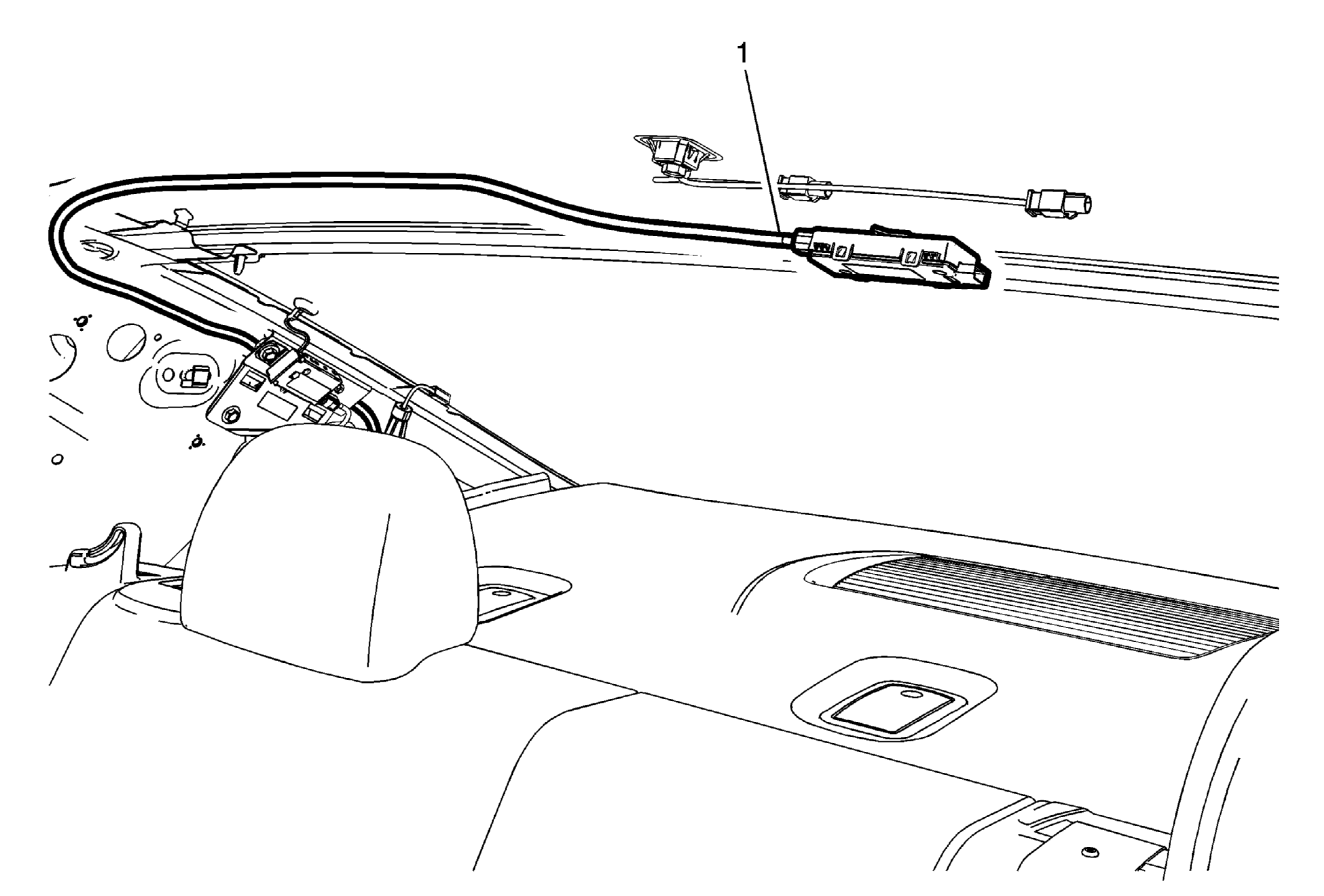

Fig 1: Remote Control Door Lock Receiver Antenna (Without HP6)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the rear of the headlining trim panel to gain access to the receiver. Refer to Headlining Trim Panel Replacement (Without Sunroof) and Headlining Trim Panel Replacement (With Sunroof) . Remove the right quarter trim panel. Refer to Quarter Trim Panel Replacement .
1	Remote Control Door Lock Receiver Antenna Procedure Disconnect the antenna from the door lock receiver. Remove antenna coax from headliner by disconnecting antenna from retaining clips. Disconnect the other end of the antenna from the radio antenna module.

Callout

Component Name

Preliminary Procedure

Lower the rear of the headlining trim panel to gain access to the receiver. Refer to Headlining Trim Panel Replacement (Without Sunroof) and Headlining Trim Panel Replacement (With Sunroof) .
Remove the right quarter trim panel. Refer to Quarter Trim Panel Replacement .

Remote Control Door Lock Receiver Antenna

Procedure

Disconnect the antenna from the door lock receiver.
Remove antenna coax from headliner by disconnecting antenna from retaining clips.
Disconnect the other end of the antenna from the radio antenna module.
