Section 54 (Keyless Entry System And Remote Functions)
›
Schematic Wiring Diagrams
›
Remote Function Wiring Schematics
›
Keyless Entry
Keyless Entry
WARNING:
This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

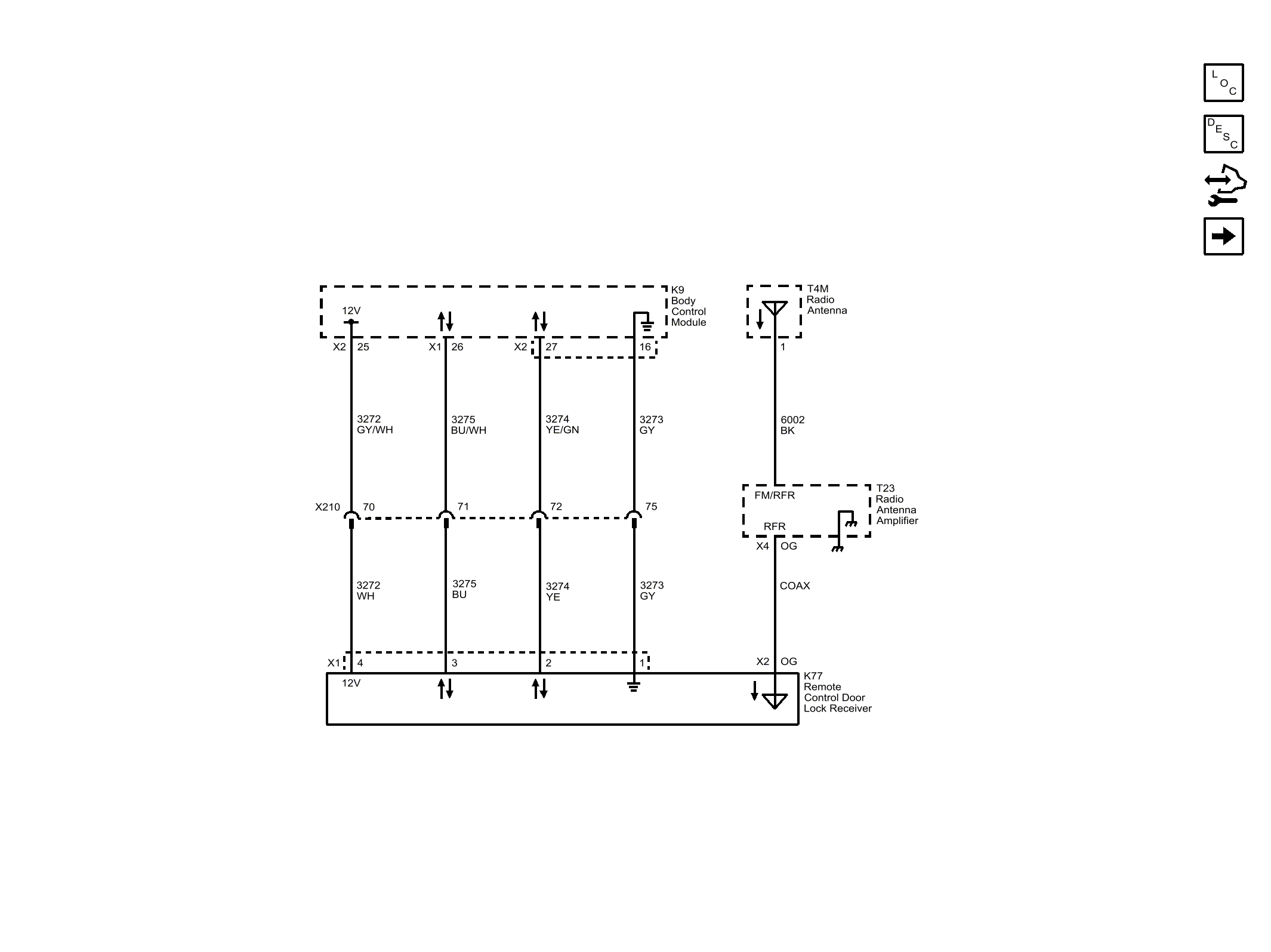

Fig 1: Keyless Entry
Courtesy of GENERAL MOTORS COMPANY
