Object Detection System And Pedestrian Protection System
›
Schematic Wiring Diagrams
›
Object Detection Wiring Schematics (Trax)
›
Rearview Camera (Trax with UVC)
Rearview Camera (Trax with UVC)

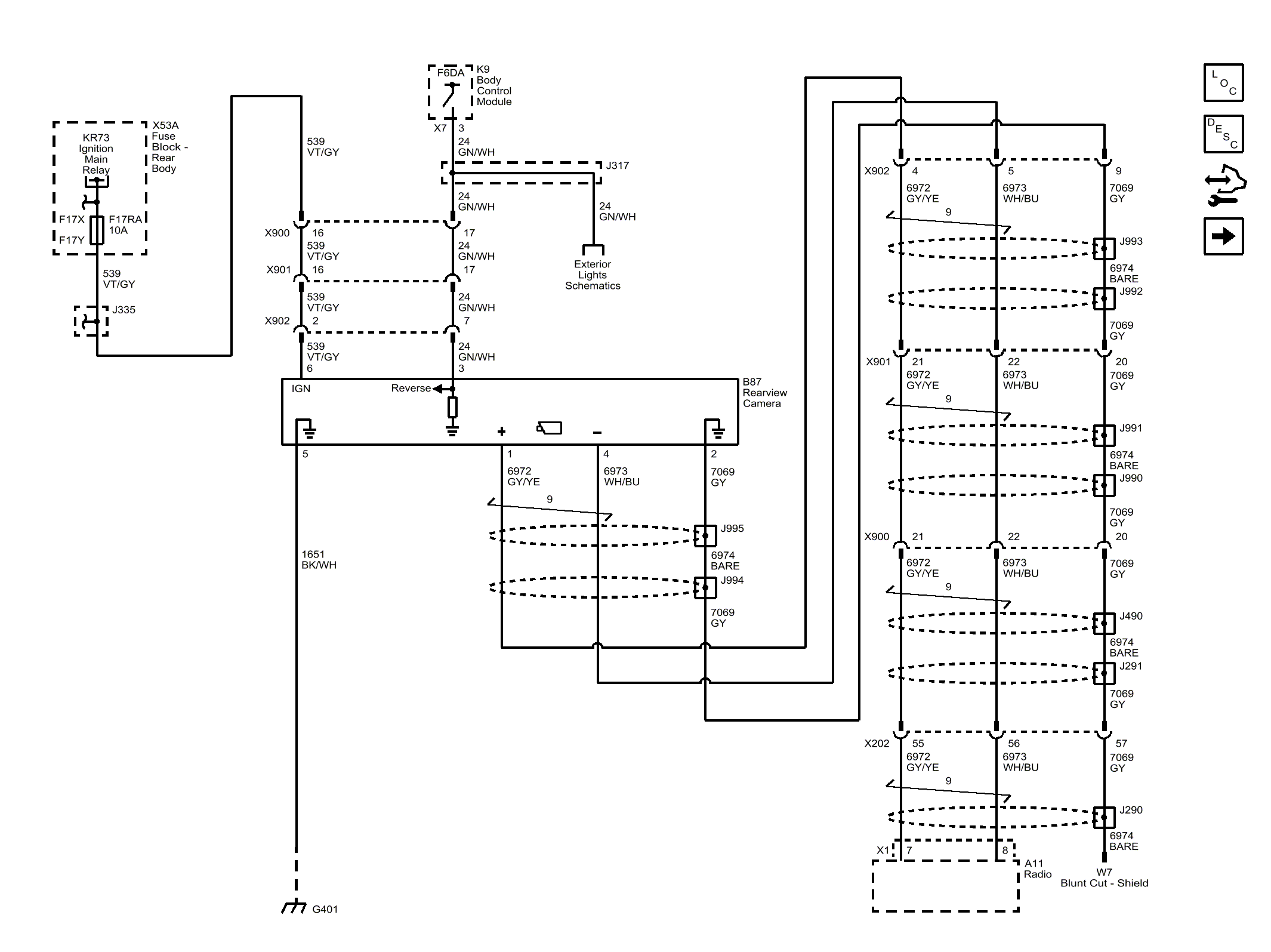

Fig 1: Rearview Camera (Trax with UVC)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
