Multifunction Power Supply Converter Bracket Replacement (MR5)

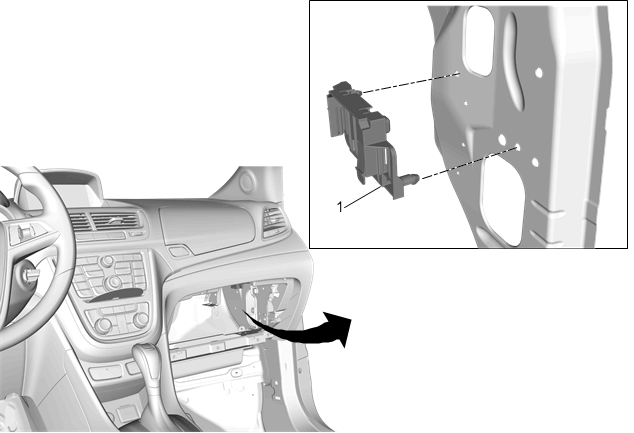

Fig 1: Multifunction Power Supply Converter Bracket (MR5)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the multifunction power supply converter. Refer to Multifunction Power Supply Converter Replacement (MR5) .
1	Multifunction Power Supply Converter Bracket Procedure  Release the bracket from the hinge pillar inner lower panel.
