Driver Information Display Replacement (UDN)

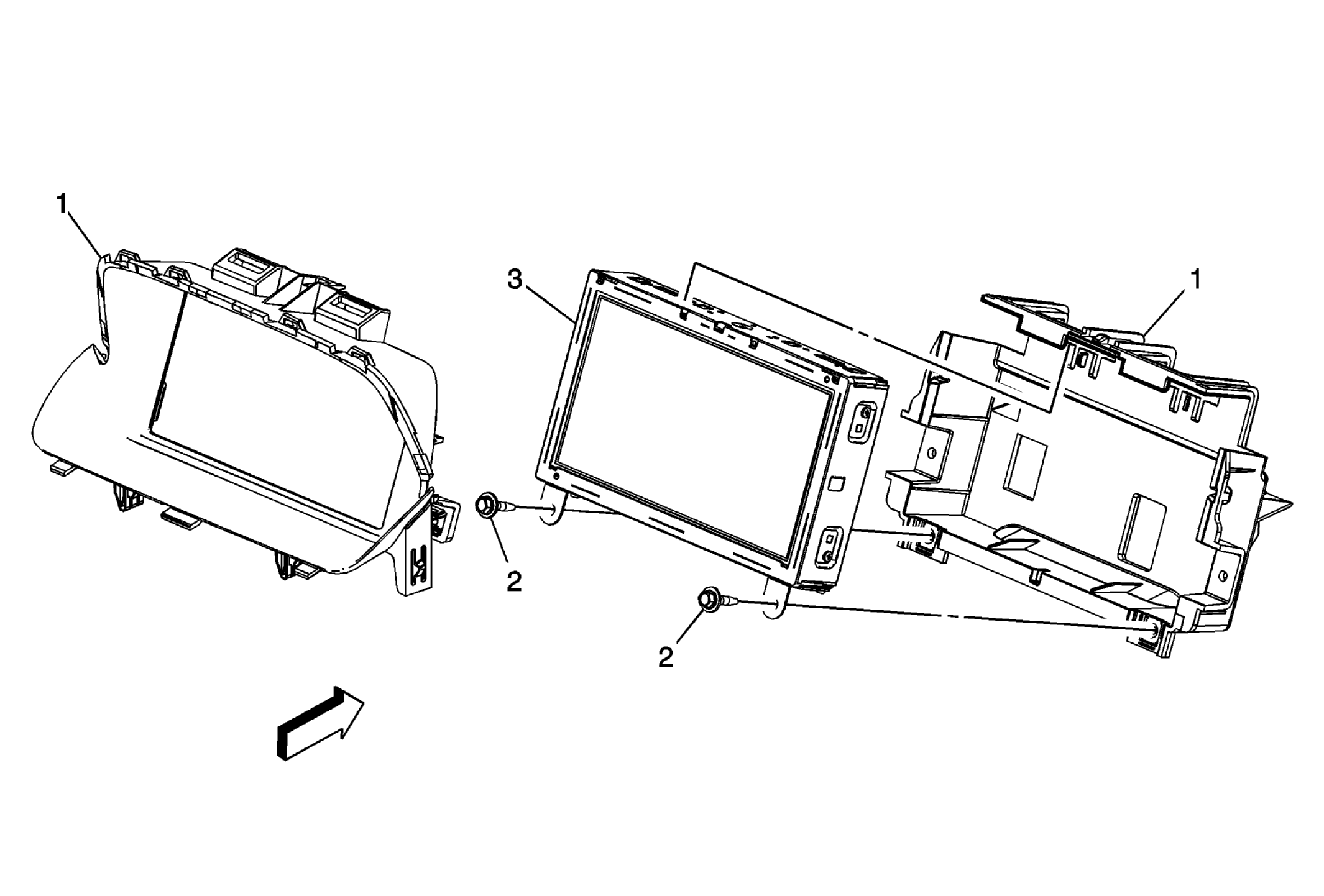

Fig 1: Driver Information Display (UDN)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Upper Trim Panel Bracket Refer to Instrument Panel Upper Trim Panel Bracket Replacement (UAG)Instrument Panel Upper Trim Panel Bracket Replacement (UDN) .
2	Driver Information Display Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
3	Driver Information Display Procedure  Refer to Control Module References for programming and set up information.
