Intake Manifold Assembly- 1.4L LUV

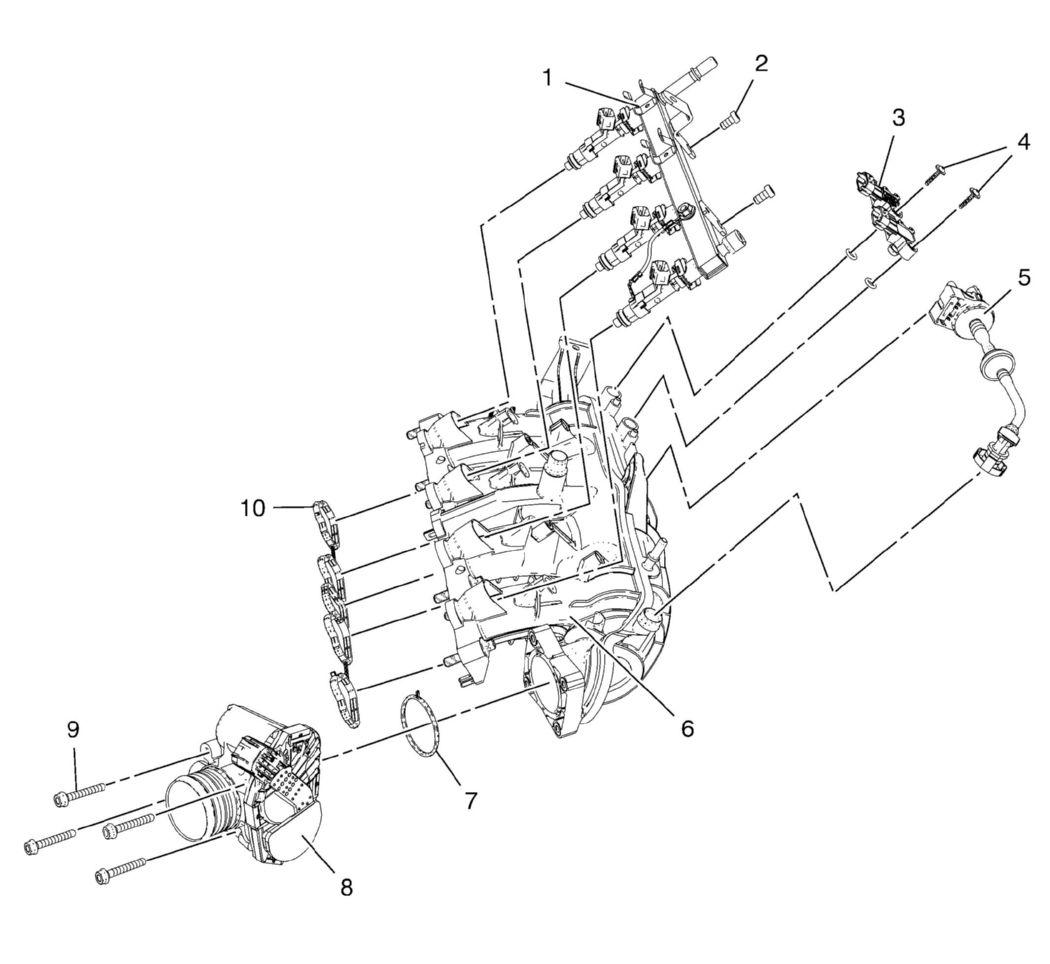

Fig 1: Intake Manifold Assembly - 1.4L LUV

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Fuel Injector Fuel Rail
2	Fuel Injector Fuel Rail Bolt
3	Manifold Absolute Pressure Sensor
4	Manifold Absolute Pressure Sensor Bolt
5	Evaporative Emission Canister Purge Solenoid Valve
6	Intake Manifold
7	Throttle Body Seal Ring
8	Throttle Body
9	Throttle Body Bolt
10	Intake Manifold Gasket
