Cargo Lamp Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

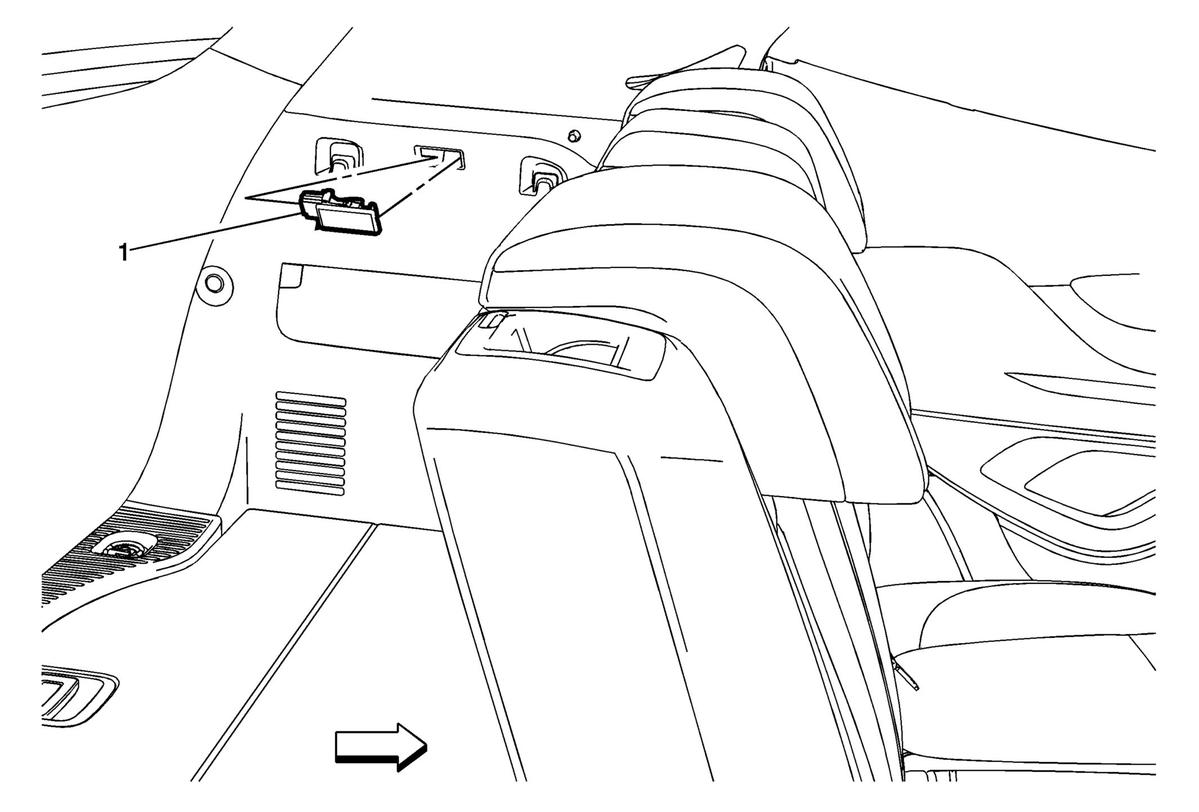

| Callout |
Component Name |
| 1 |
Cargo Lamp Procedure
- Use a plastic flat bladed trim tool in order to release the lamp assembly from the rear quarter trim panel.
- Disconnect the electrical connection.
|
