Accessory Switch Replacement (Trax)

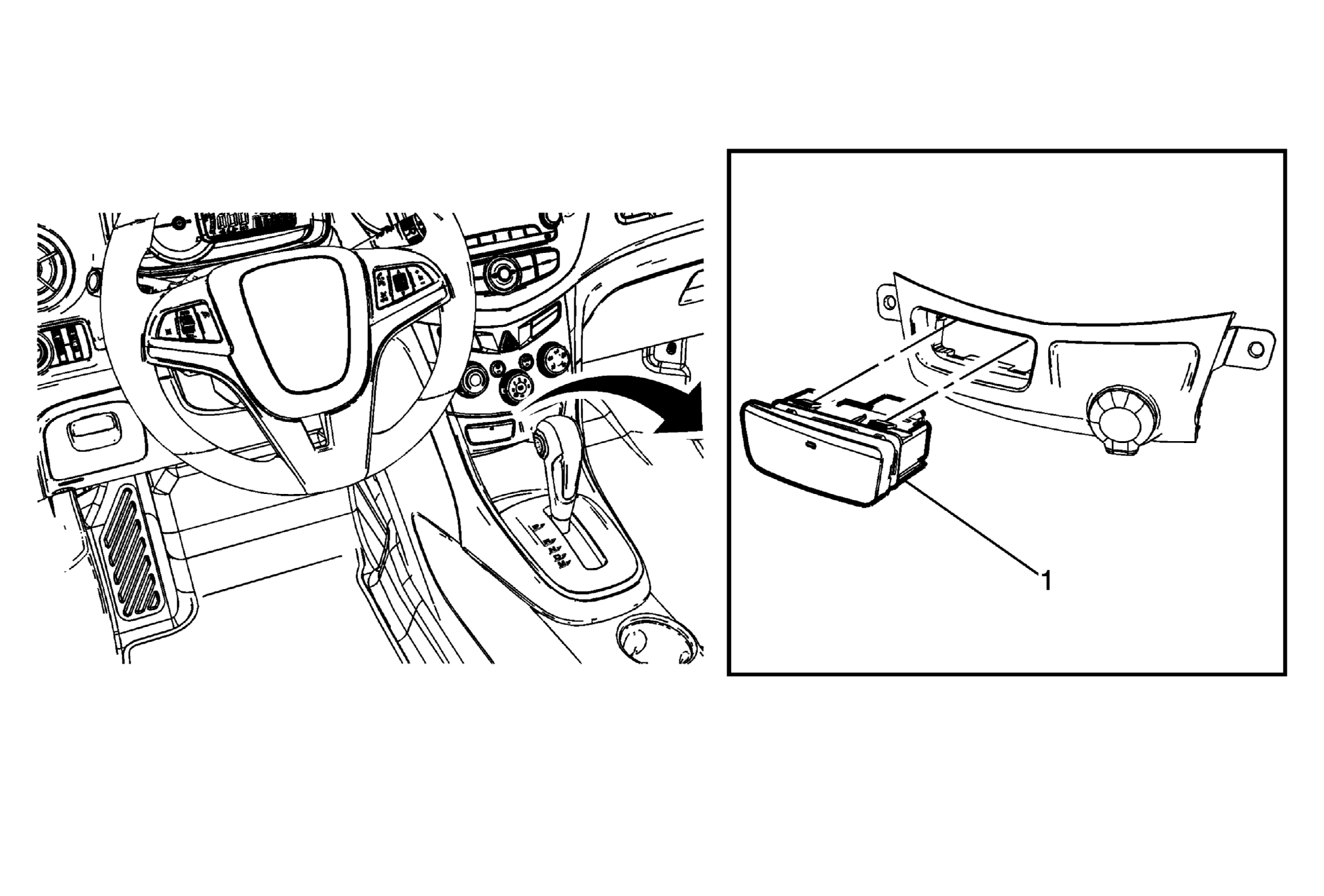

Fig 1: Accessory Switch (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the instrument panel lower center trim plate applique. Refer to Instrument Panel Lower Center Trim Plate Applique Replacement (Trax) .
1	Accessory Switch Procedure  Depress the tabs on the switch to remove from the trim plate.
