Air Cleaner Inlet Duct Replacement

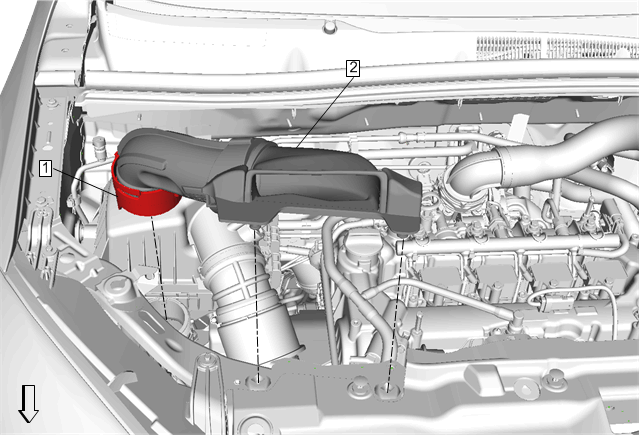

Fig 1: Air Cleaner Inlet Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Air Cleaner Inlet Duct Retainer CAUTION: Refer to Fastener Caution . Procedure  Turn the air cleaner inlet duct retainer to release it from the air cleaner assembly.
2	Air Cleaner Inlet Duct Procedure  Remove the air cleaner inlet duct by pulling upward to release the inlet duct from the rubber grommets and the air cleaner assembly.
