Air Cleaner Outlet Duct Replacement

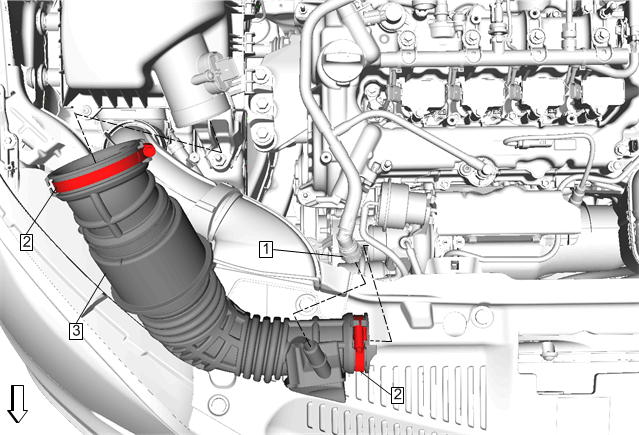

| Callout | Component Name |
|---|---|
| 1 | Positive Crankcase Ventilation Tube Procedure PCV Tube @ Air Cleaner Outlet Duct - Disconnect — Plastic Collar Quick Connect Fitting Service |
| 2 | Air Cleaner Outlet Duct Clamp
CAUTION:
Refer to Fastener Caution .
NOTE:
Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under. Tighten 3 N.m (27 lb in) |
| 3 | Air Cleaner Outlet Duct |
