Cellular System, Entertainment System, And Navigation System
›
Schematic Wiring Diagrams
›
OnStar/Telematics Wiring Schematics
›
Telematics Communication Interface Control Module
Telematics Communication Interface Control Module

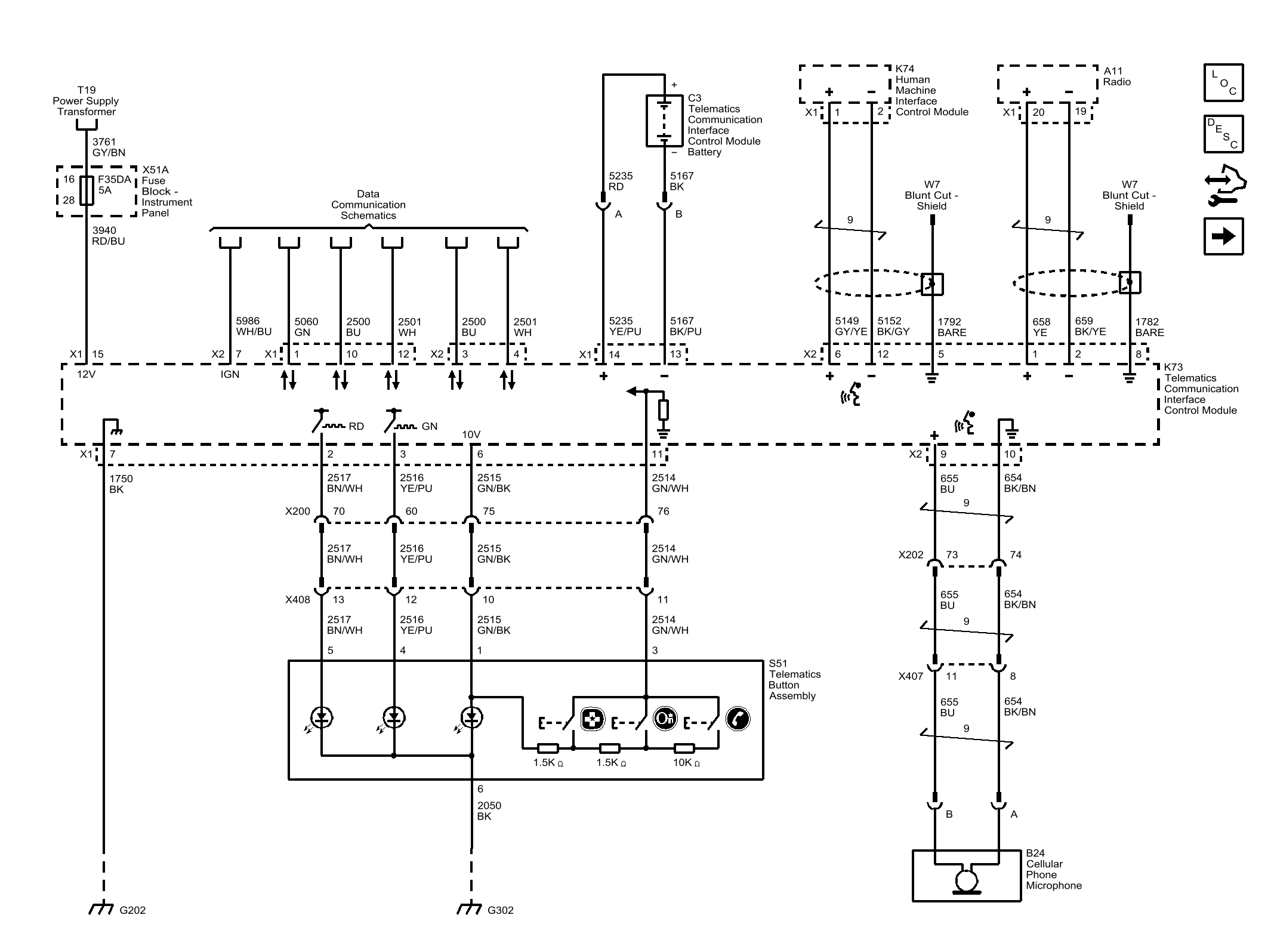

Fig 1: Telematics Communication Interface Control Module
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
