Radio/Navigation System Wiring Schematics
›
Infotainment Faceplate Control Module
Infotainment Faceplate Control Module

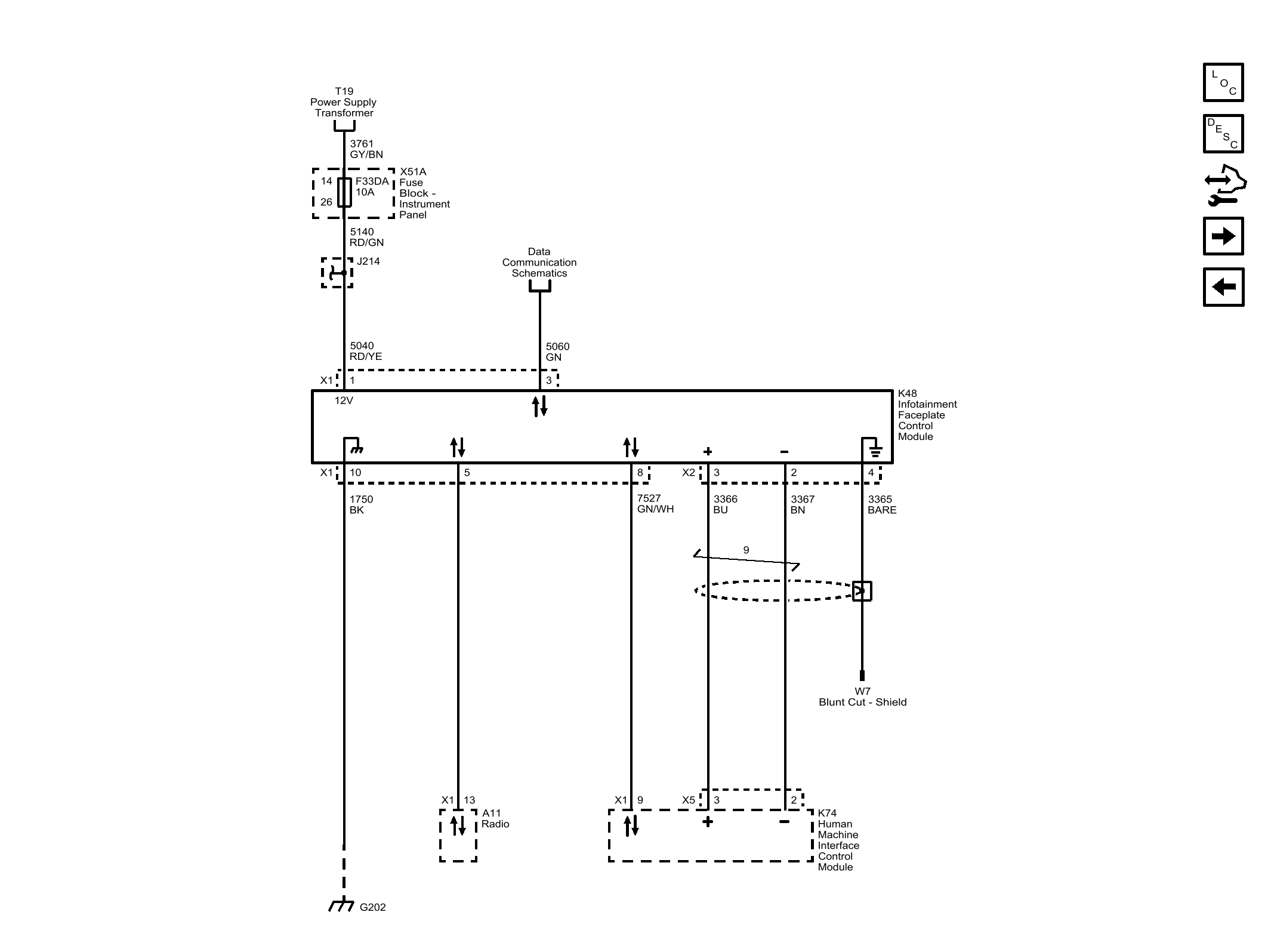

Fig 1: Infotainment Faceplate Control Module
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
