Park Assist - Module Power, Ground, Serial Data, and Controls

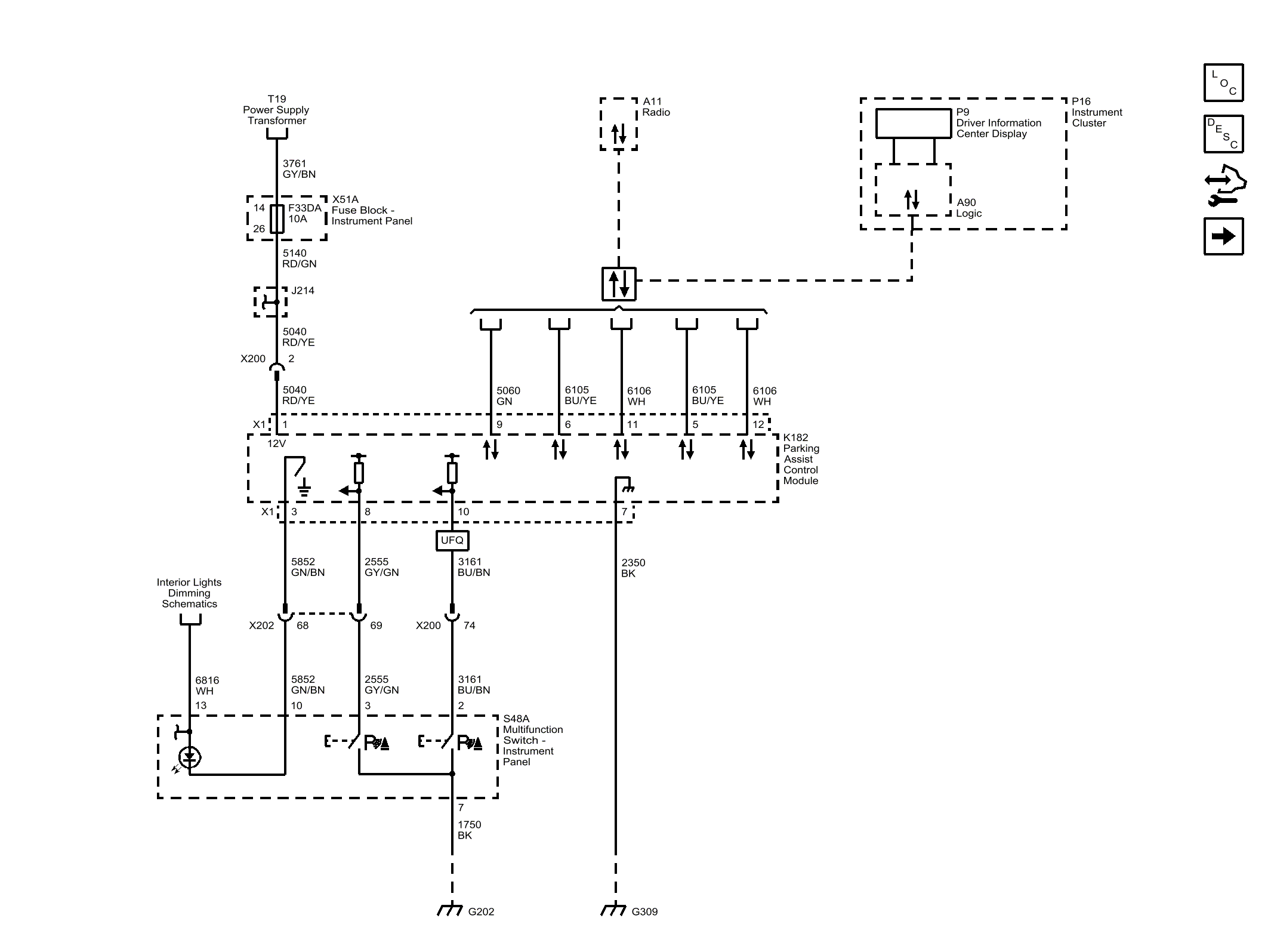

Fig 1: Park Assist - Module Power, Ground, Serial Data, and Controls
GM3997106Courtesy of GENERAL MOTORS COMPANY
