Installation Procedure

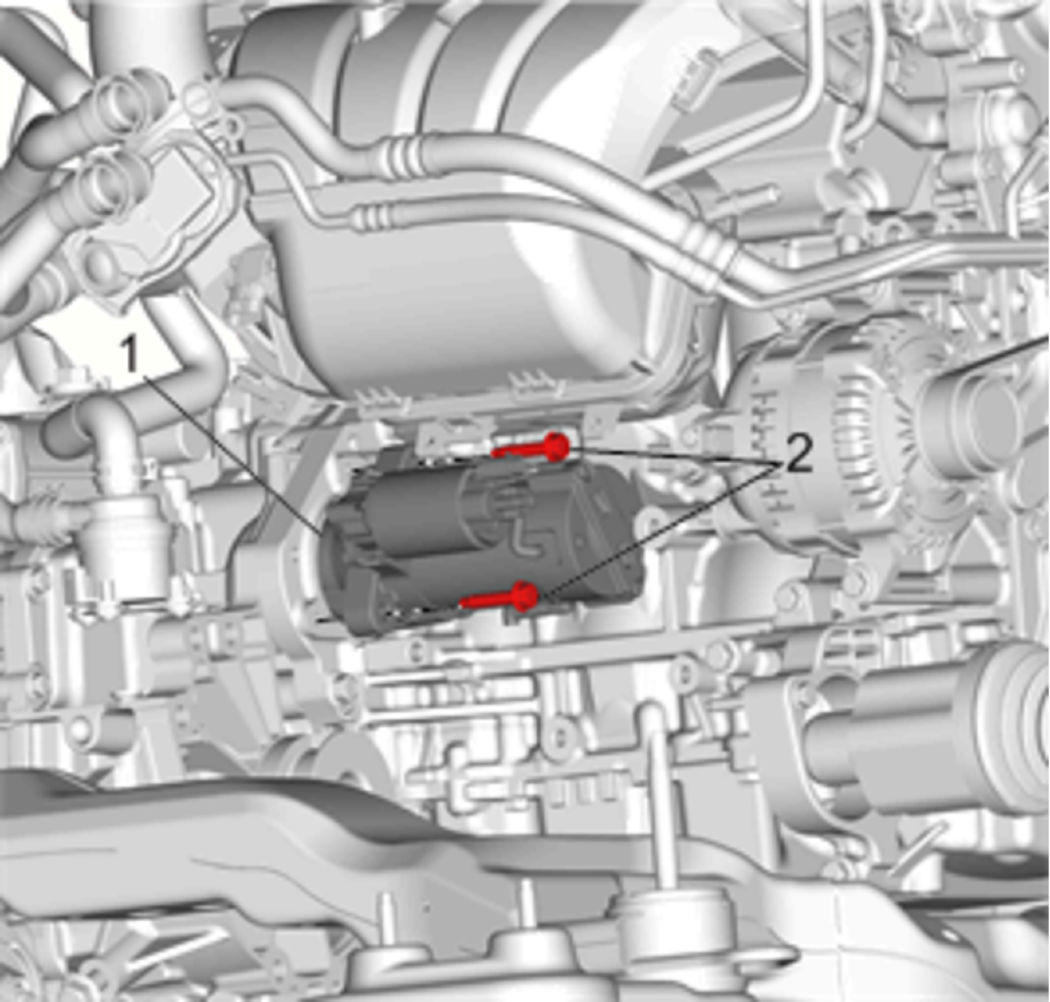

    Fig 1: Starter
    GM3903508Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the starter (1) into position and tighten the mounting fasteners (2) to 22 N.m (16 lb ft).
    2. Fig 2: Starter Solenoid
    GM3903504Courtesy of GENERAL MOTORS COMPANY
  2. Install the battery positive cable terminal (1) to the starter solenoid (4) and tighten the fastener (2) to 12 N.m (106 lb in).
  3. Connect the engine harness connector (3) to the starter solenoid.
    4. Fig 3: Oil Pressure Sensor
    GM3903502Courtesy of GENERAL MOTORS COMPANY
  4. Connect the engine harness connector (1) to the engine oil pressure sensor and the harness retainer (3) to the engine block.
  5. Install the power transfer unit case. Refer to Power Transfer Unit Case Replacement .
  6. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
