Head-Up Display Bracket Replacement

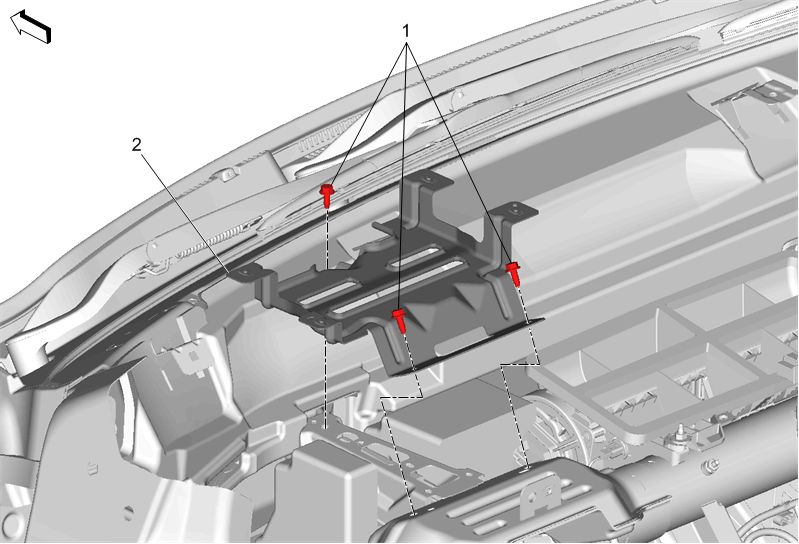

Fig 1: Head-Up Display Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Head-Up Display Replacement
1	Instrument Panel Accessory Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Head-Up Display Bracket
