Installation Procedure

    Fig 1: Air Conditioning Condenser
    GM3903586Courtesy of GENERAL MOTORS COMPANY
  1. Slide the radiator upward onto the air conditioning condenser (1).
    2. Fig 2: Radiator Upper Insulator
    GM3825589Courtesy of GENERAL MOTORS COMPANY
  2. Radiator Upper Insulator Replacement  (2) - Install

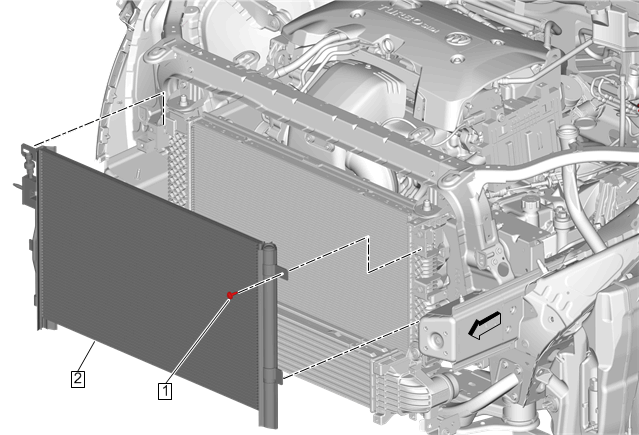

    3. Fig 3: Air Conditioning Condenser
    GM3903747Courtesy of GENERAL MOTORS COMPANY
  3. Air Conditioning Condenser Radiator Bolt (1) @Radiator - Install Air Conditioning Condenser Replacement (LTG)
  4. Air Conditioning Condenser Support - Remove
    5. Fig 4: Radiator Outlet Hose
    GM3823822Courtesy of GENERAL MOTORS COMPANY
  5. Radiator Outlet Hose (2) @Radiator - Install Radiator Outlet Hose Replacement (LTG)
    6. Fig 5: Radiator Inlet Hose
    GM3822851Courtesy of GENERAL MOTORS COMPANY
  6. Radiator Inlet Hose (2) @Radiator - Install Radiator Inlet Hose Replacement (LTG)
    7. Fig 6: Engine Coolant Fan Shroud
    GM3824934Courtesy of GENERAL MOTORS COMPANY
  7. Engine Coolant Fan Shroud Replacement  (2) - Install
    8. Fig 7: Transmission Fluid Auxiliary Cooler
    GM3871528Courtesy of GENERAL MOTORS COMPANY
  8. Transmission Fluid Auxiliary Cooler Replacement (LTG) (1) - Install
  9. Fill the cooling system. Cooling System Draining and Filling (Static Fill) Cooling System Draining and Filling (GE 47716)
  10. Check the cooling system for leaks.
  11. Charge Air Cooler Replacement - Install
