Fuel Level Sensor Replacement

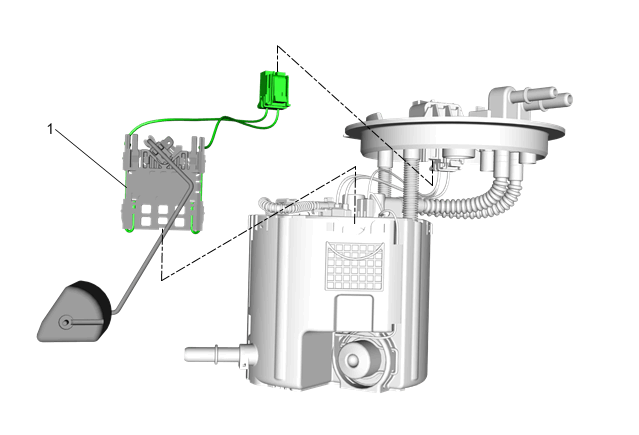

Fig 1: Fuel Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .
1	Fuel Level Sensor Procedure  Release tabs to remove fuel level sensor.
