Fuel Pump Cover Replacement

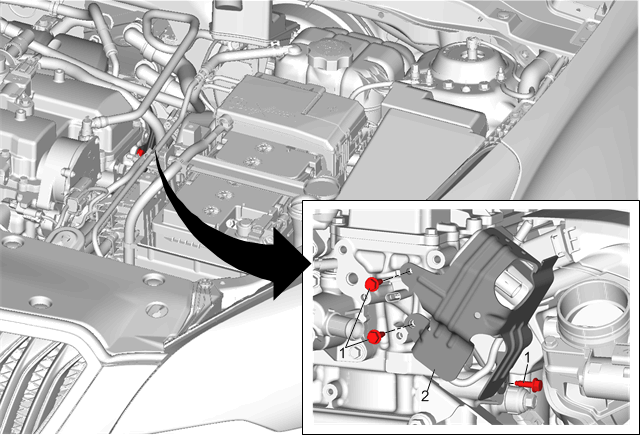

Fig 1: Fuel Pump Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Charge Air Cooler Outlet Air Tube Replacement Intake Manifold Cover Replacement
1	Fuel Pump Cover Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Fuel Pump Cover Procedure Disconnect the electrical connector from the fuel pump.

Callout

Component Name

Preliminary Procedures

Fuel Pump Cover Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Fuel Pump Cover
Procedure
Disconnect the electrical connector from the fuel pump.
