Data Communication System
›
Schematic Wiring Diagrams
›
Data Communication Wiring Schematics
›
High Speed GMLAN Bus 1 (1 of 2)
High Speed GMLAN Bus 1 (1 of 2)

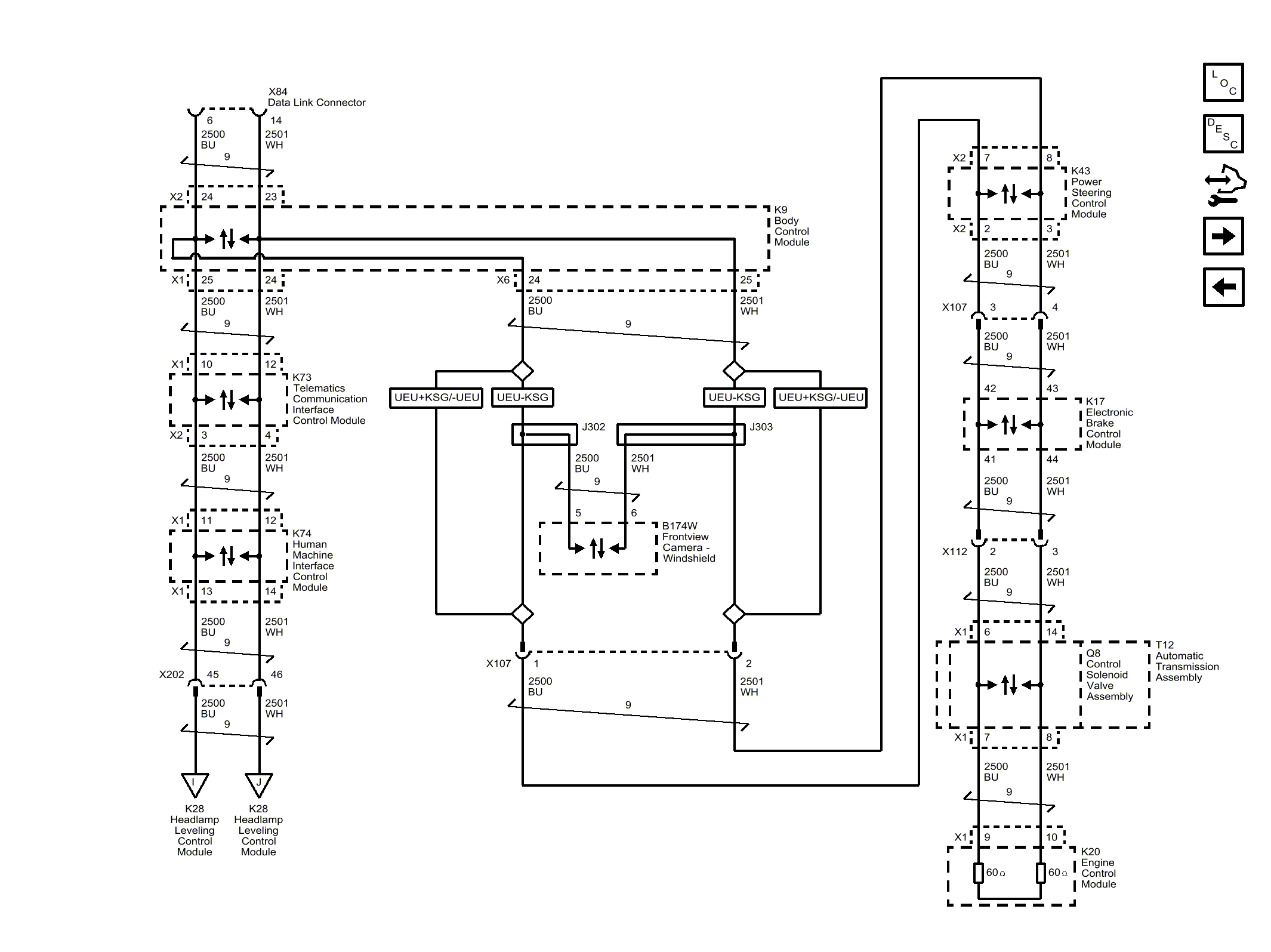

Fig 1: High Speed GMLAN Bus 1 (1 of 2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
