Data Communication Wiring Schematics
›
High Speed GMLAN Bus 2
High Speed GMLAN Bus 2

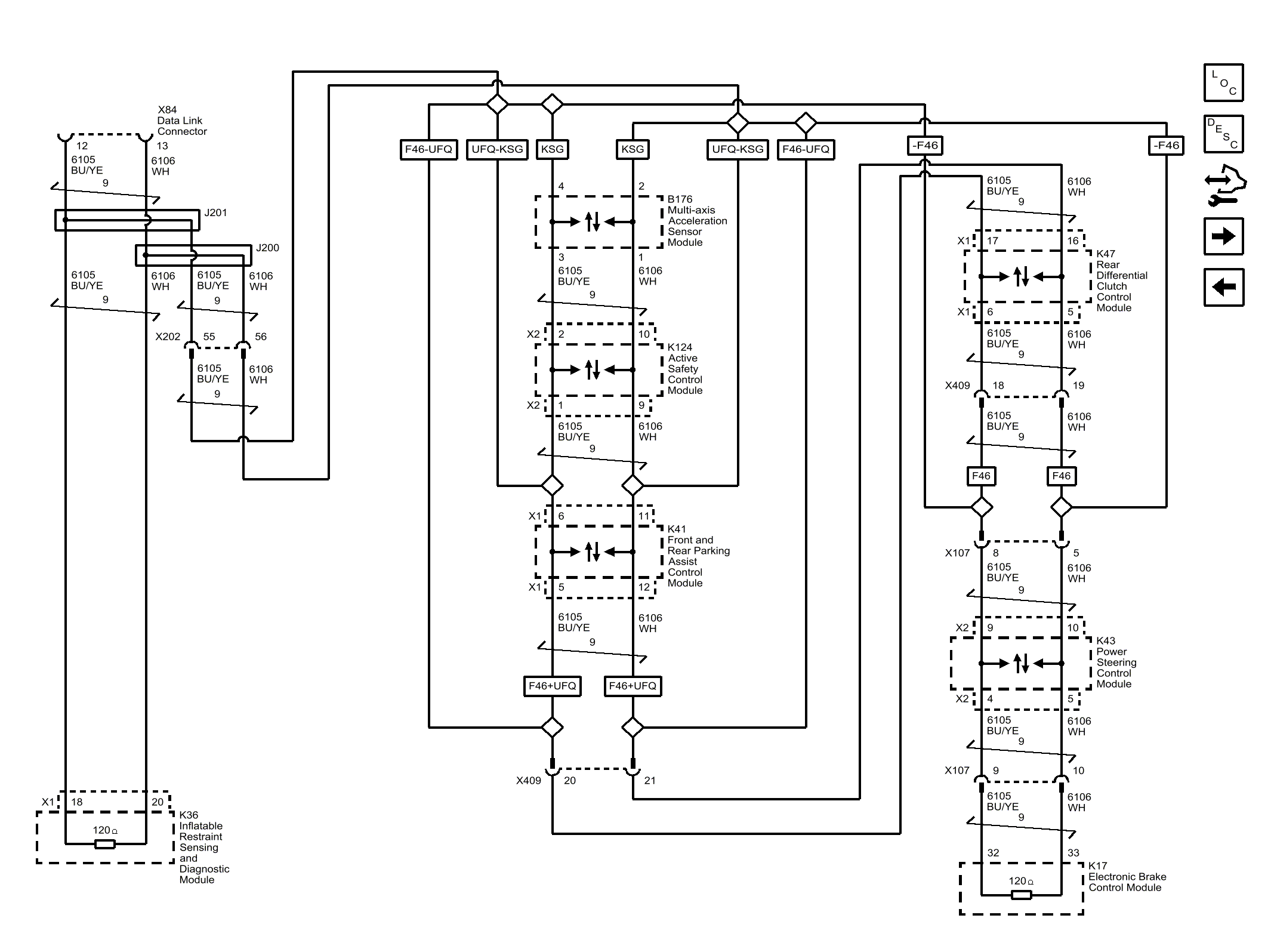

Fig 1: High Speed GMLAN Bus 2
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
