Linear Interconnect Network (LIN) (1 of 2)

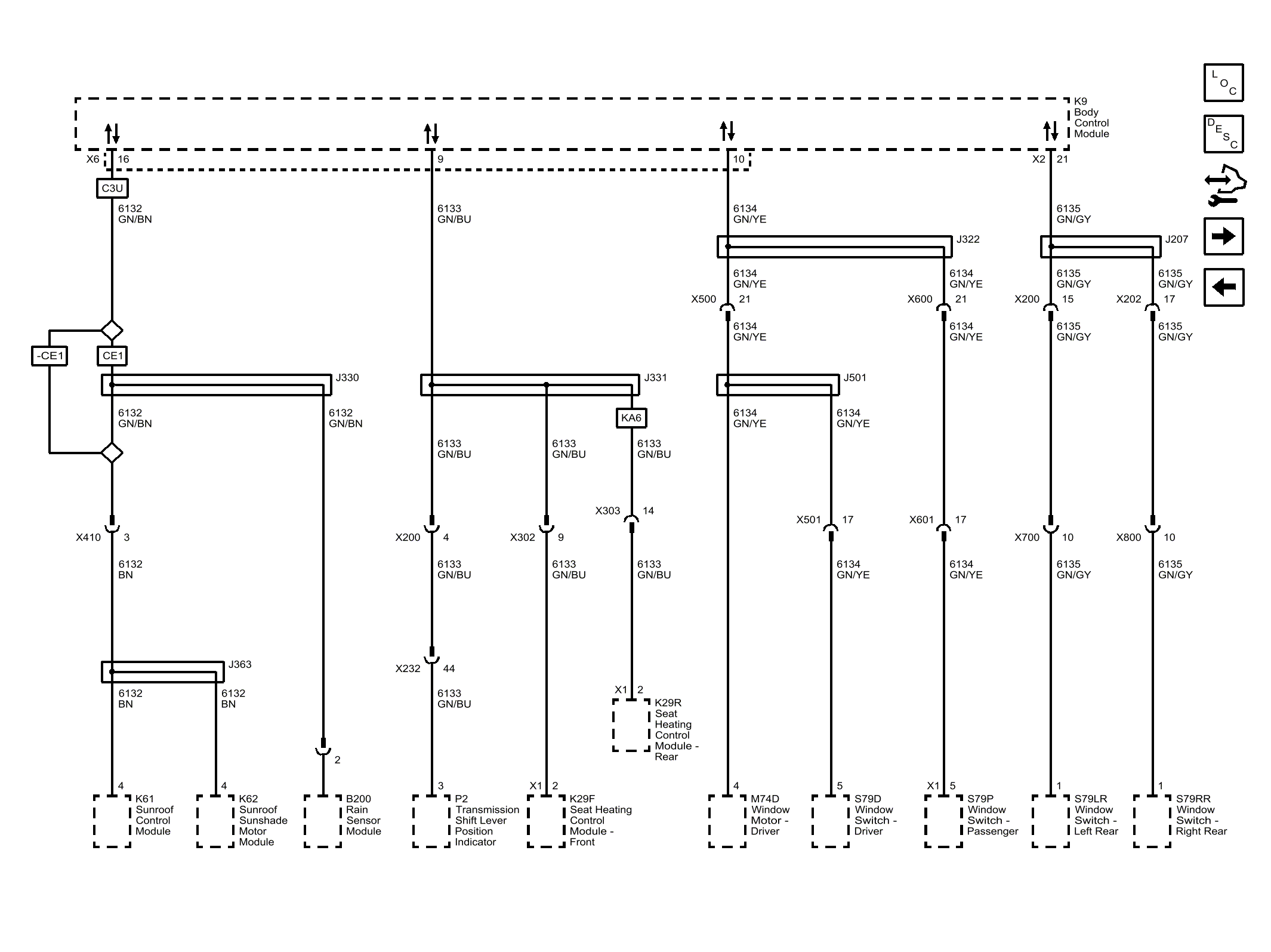

Fig 1: Linear Interconnect Network (LIN) (1 of 2)
GM3996792Courtesy of GENERAL MOTORS COMPANY
