Linear Interconnect Network (LIN) (2 of 2)

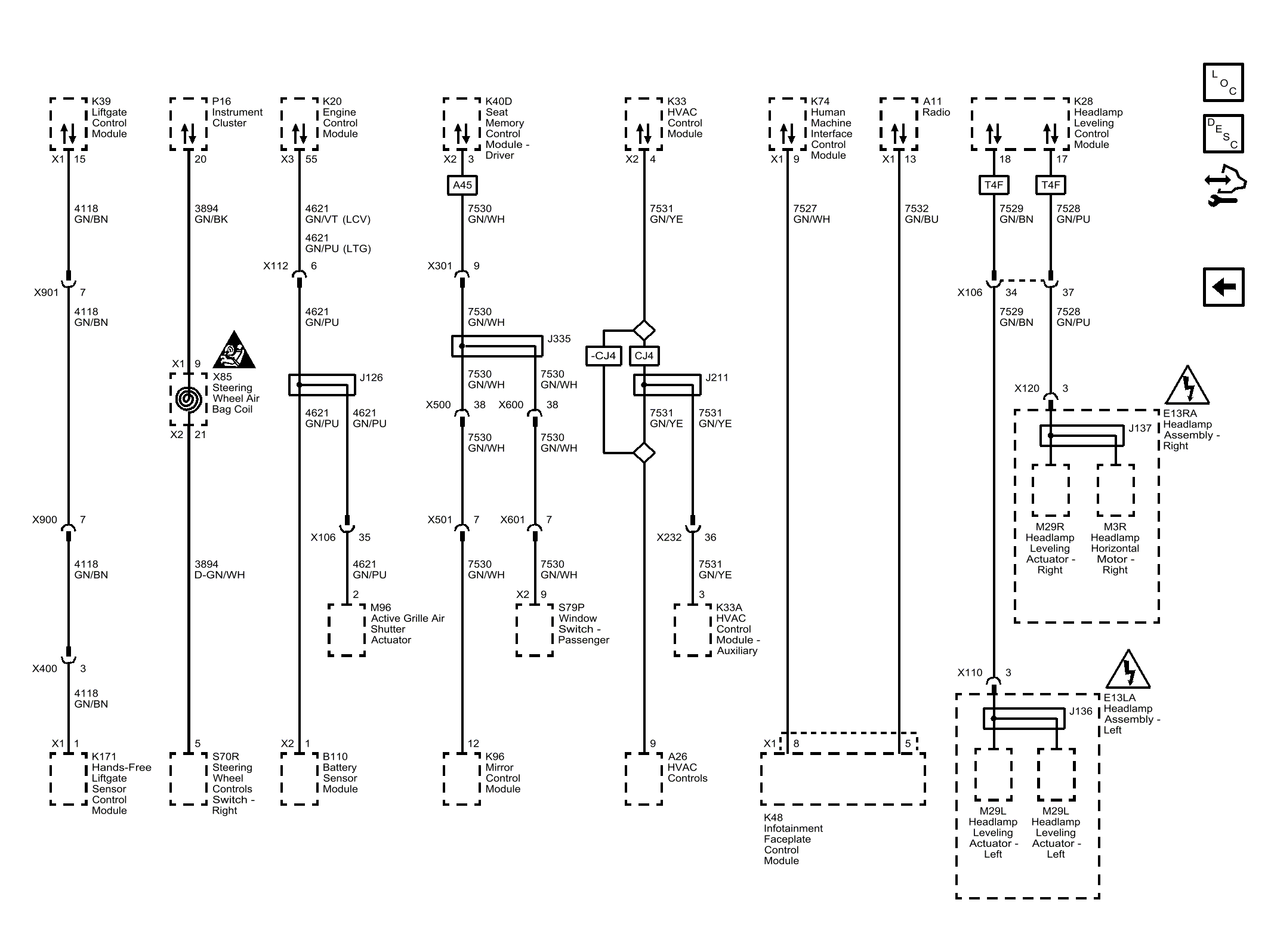

Fig 1: Linear Interconnect Network (LIN) (2 of 2)
GM3996794Courtesy of GENERAL MOTORS COMPANY
