Front Fog Lamp Replacement
WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

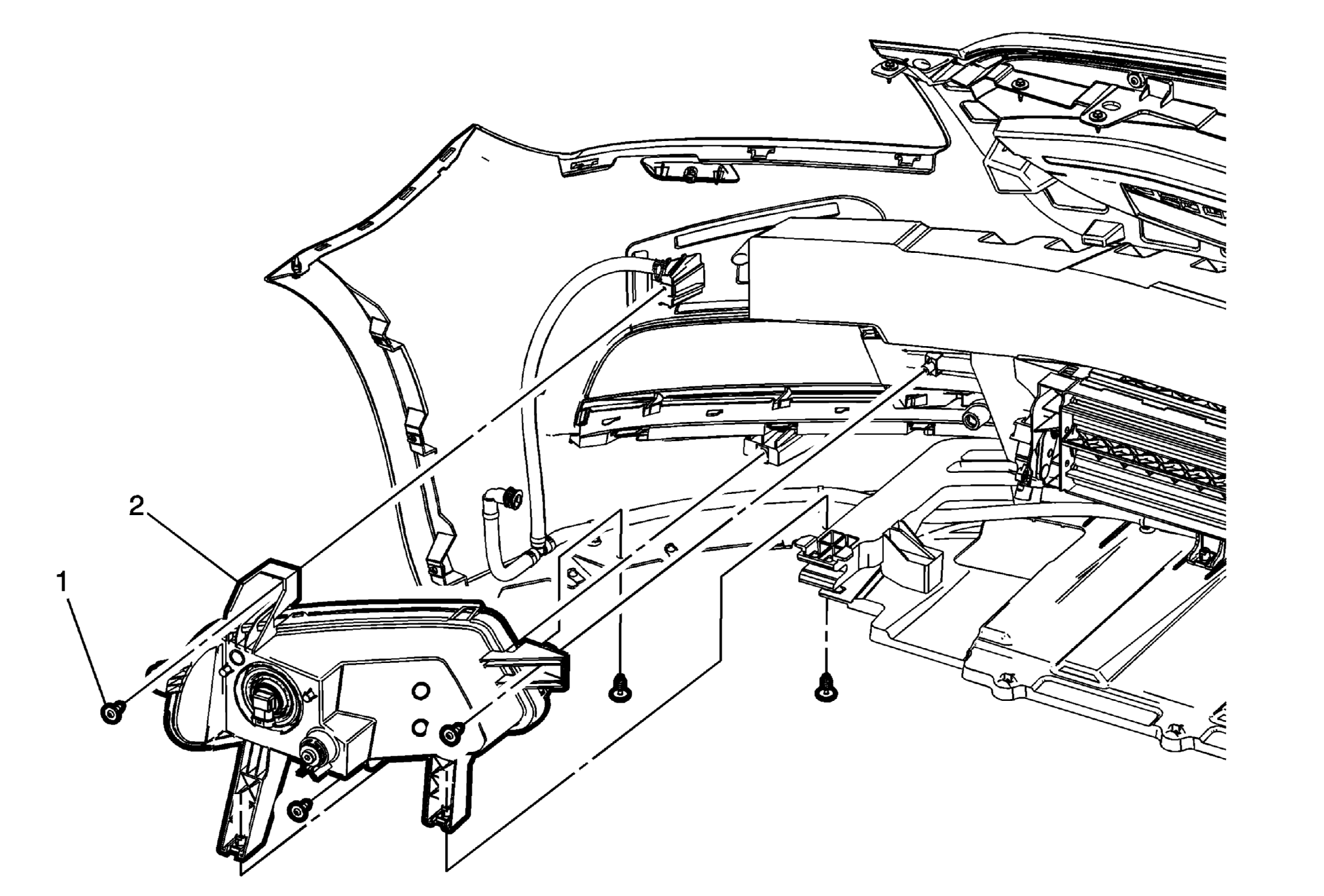

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Front Fog Lamp Bolt (Qty: 5)
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Fog Lamp
WARNING:
Refer to Halogen Bulb Warning . Procedure Disconnect the headlamp washer hose, if equipped. |
