Generator Control Module Coolant Pump Hose Replacement

WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

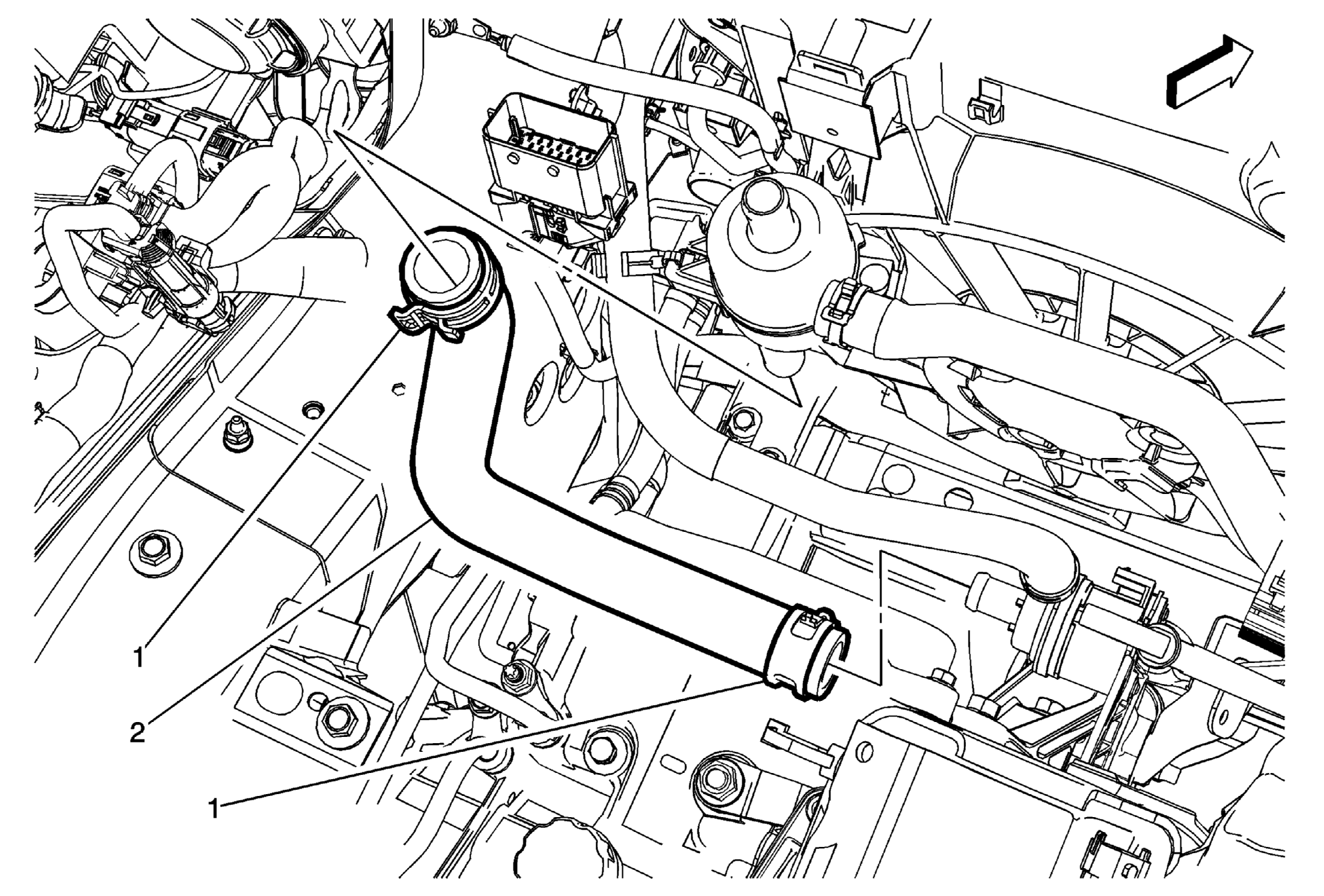

Fig 1: Generator Control Module Cooling Outlet Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove intake manifold cover. Refer to Intake Manifold Cover Replacement . Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill)Cooling System Draining and Filling (GE 47716) .
1	Generator Control Module Coolant Pump Hose Clamp (Qty: 2)
2	Generator Control Module Coolant Pump Hose

Callout

Component Name

Preliminary Procedure

Remove intake manifold cover. Refer to Intake Manifold Cover Replacement .
Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill)Cooling System Draining and Filling (GE 47716) .

Generator Control Module Coolant Pump Hose Clamp (Qty: 2)

Generator Control Module Coolant Pump Hose
