Keyless Entry - Passive Entry (ATH), Passive Start (BTM)

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

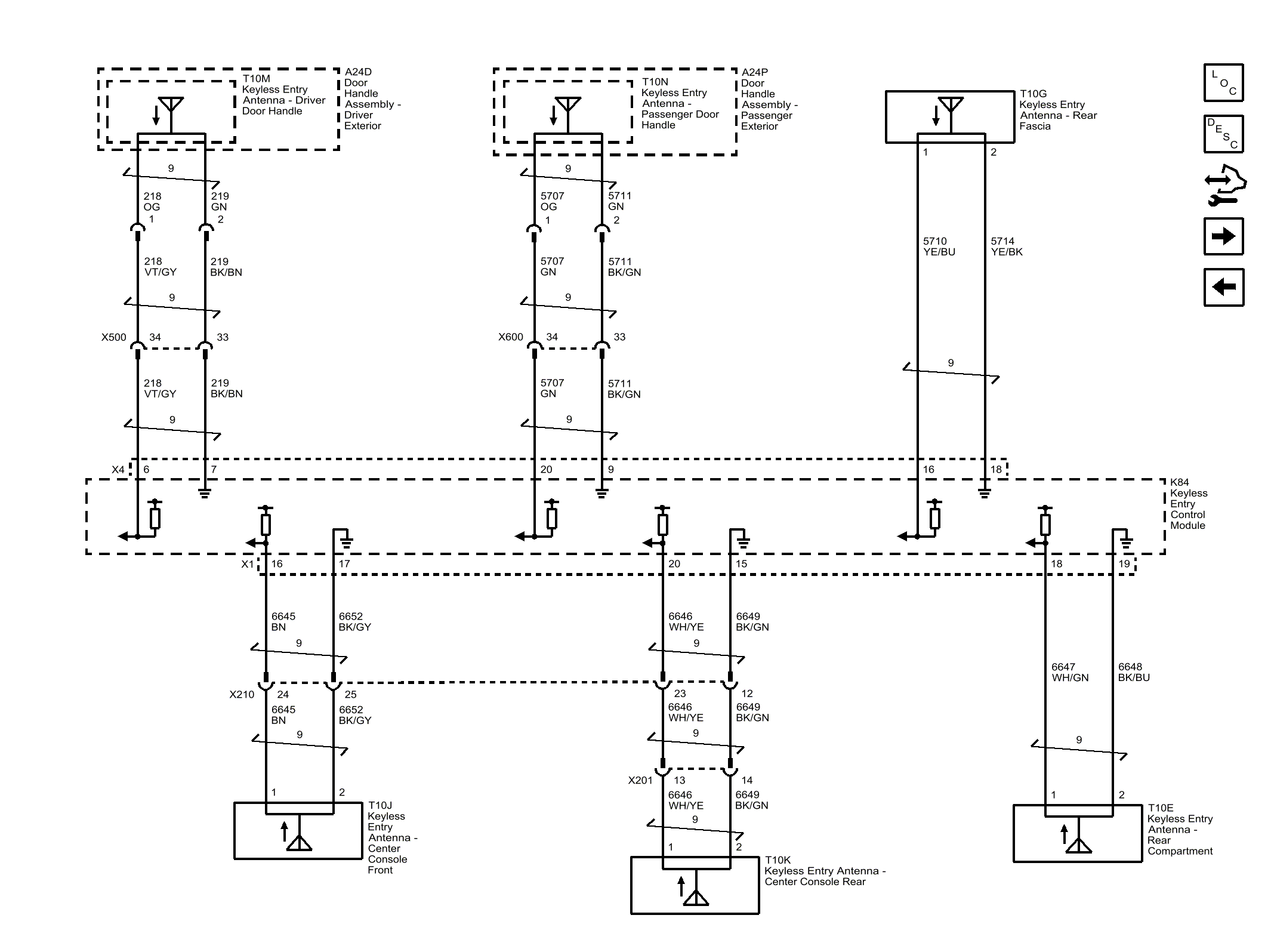

Fig 1: Keyless Entry - Passive Entry (ATH), Passive Start (BTM)
GM3774242Courtesy of GENERAL MOTORS COMPANY
