Headlamp Switch Replacement

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

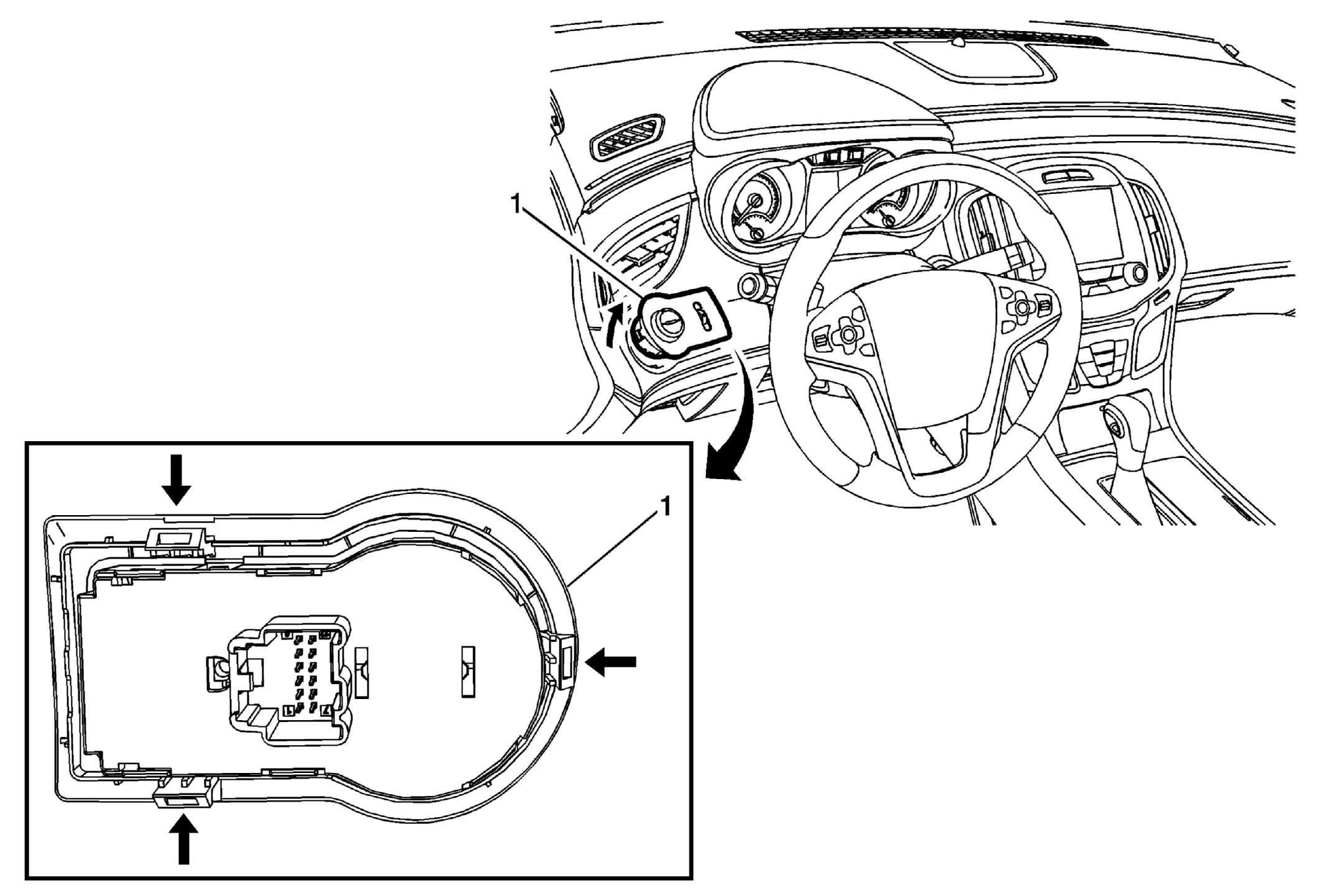

Fig 1: Headlamp Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel cluster lower compartment. Refer to Instrument Panel Cluster Lower Compartment Replacement .
1	Headlamp Switch Procedure Disconnect the electrical connection. Push in tabs to release the switch from the panel.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel cluster lower compartment. Refer to Instrument Panel Cluster Lower Compartment Replacement .

Headlamp Switch

Procedure

Disconnect the electrical connection.
Push in tabs to release the switch from the panel.
