Radiator Upper Bracket Replacement

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

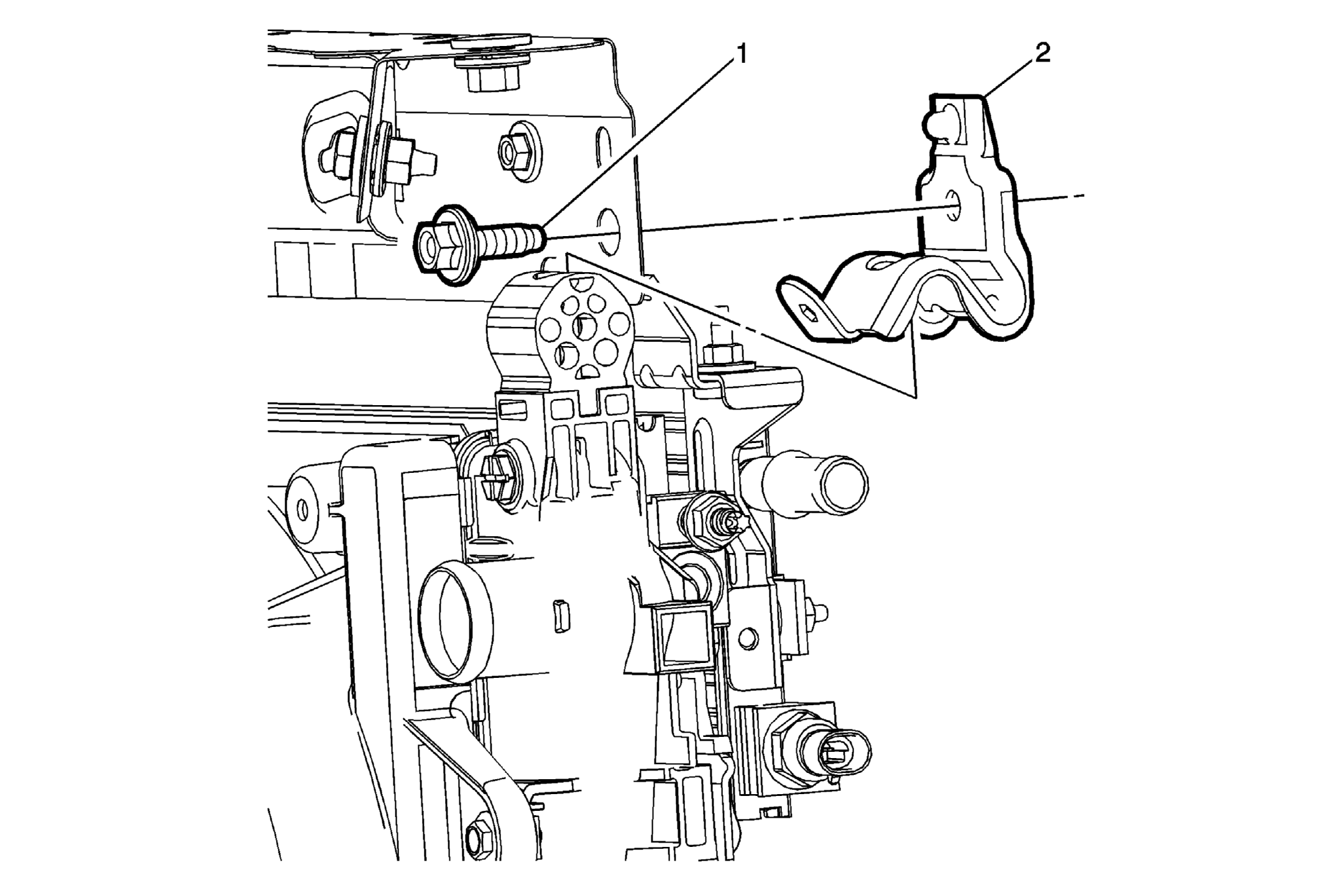

Fig 1: Radiator Upper Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Support the radiator.
1	Radiator Upper Support Bracket Fastener (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Radiator Upper Support Bracket (Qty: 1)

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement
Support the radiator.

Radiator Upper Support Bracket Fastener (Qty: 1)

CAUTION:

Refer to Fastener Caution .

Tighten
25 N.m (18 lb ft)

Radiator Upper Support Bracket (Qty: 1)
