Radiator Upper Mount Replacement

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

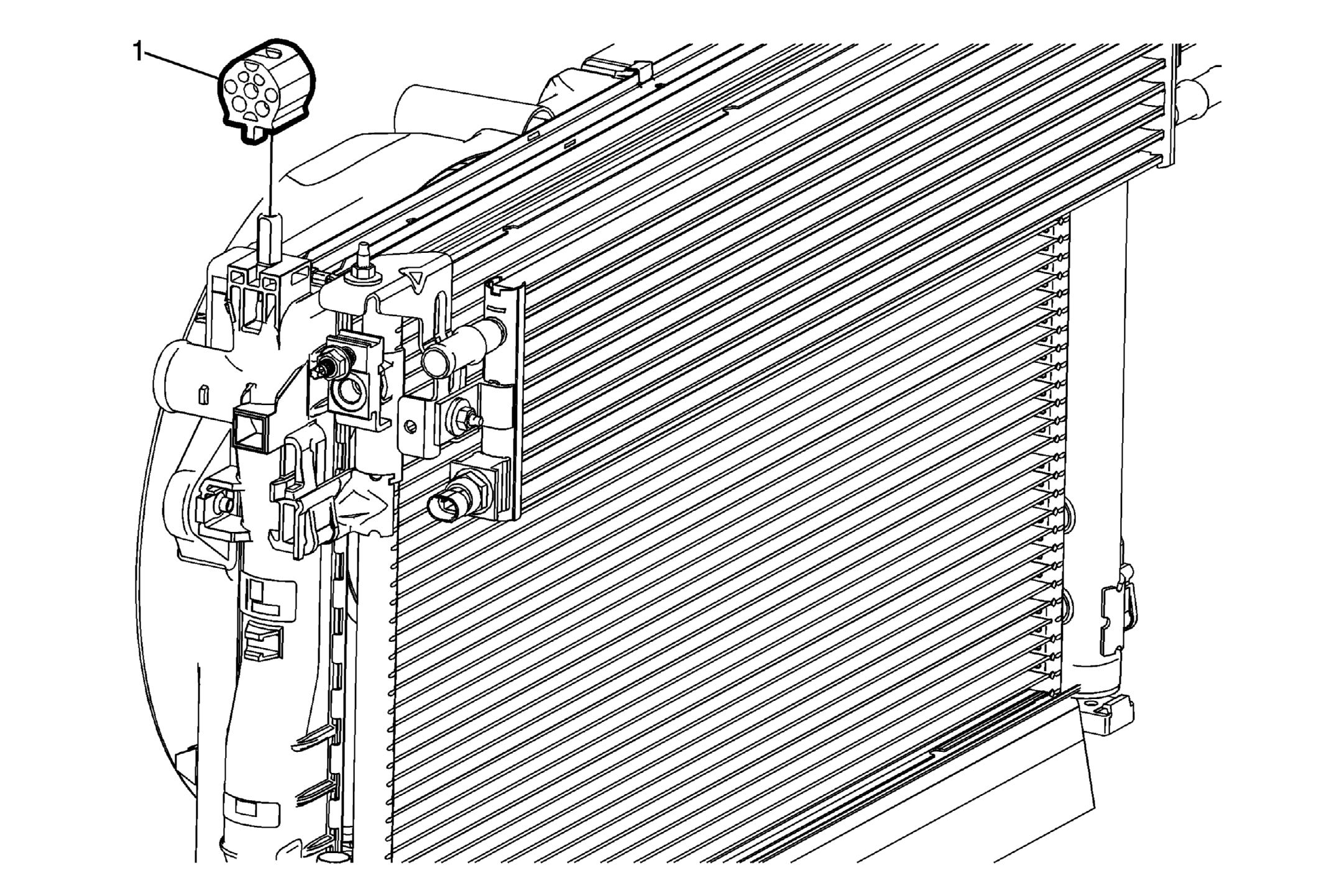

Fig 1: Radiator Upper Mount

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the radiator. Refer to Radiator Replacement (LFX LUK) .
1	Radiator Upper Mount

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the radiator. Refer to Radiator Replacement (LFX LUK) .

Radiator Upper Mount
