Installation Procedure
WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.
- Transfer the front side door lock cables.
- Transfer the front side door lock cylinder rod.

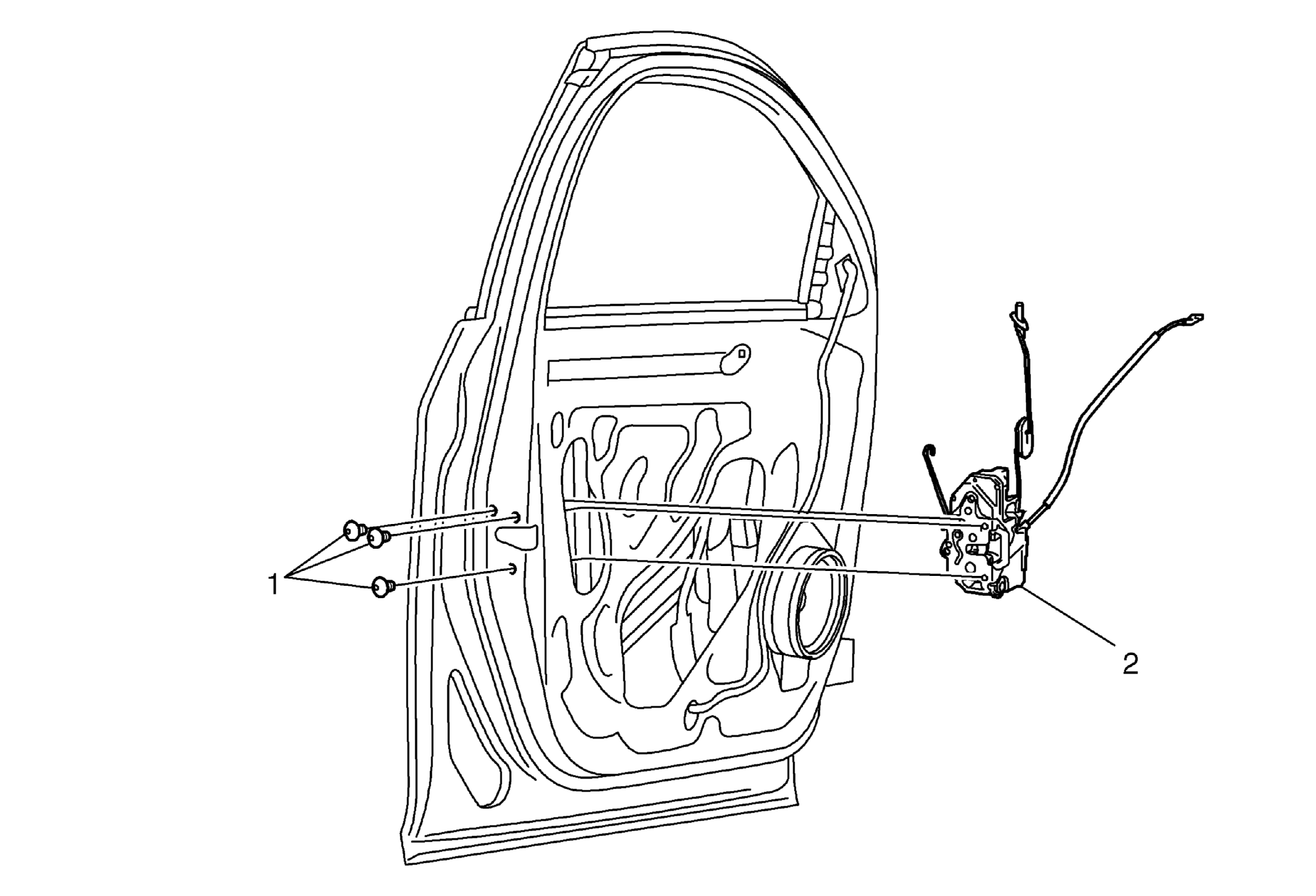

- Install the three bolts (1) to the front side door lock (2) and tighten to 10 N.m (89 lb in).
- Connect the electrical connector to the front side door lock.
- Install the front side door locking rod. Refer to Front Side Door Locking Rod Replacement .
- Install the front side door window rear channel. Refer to Front Side Door Window Rear Channel Replacement .
- Install the window to the window regulator and reinstall the rear rail to the door. Refer to Front Side Door Window Regulator Replacement .
- Remove the tape from the front side door window and frame.
- Inspect the door latch and outside handle for proper operation before installing the door trim.
- Install the front side door water deflector.
- Install the front side door trim. Refer to Front Side Door Trim Replacement .
CAUTION:
Refer to Fastener Caution .
