Radio Rear Speaker Replacement
WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

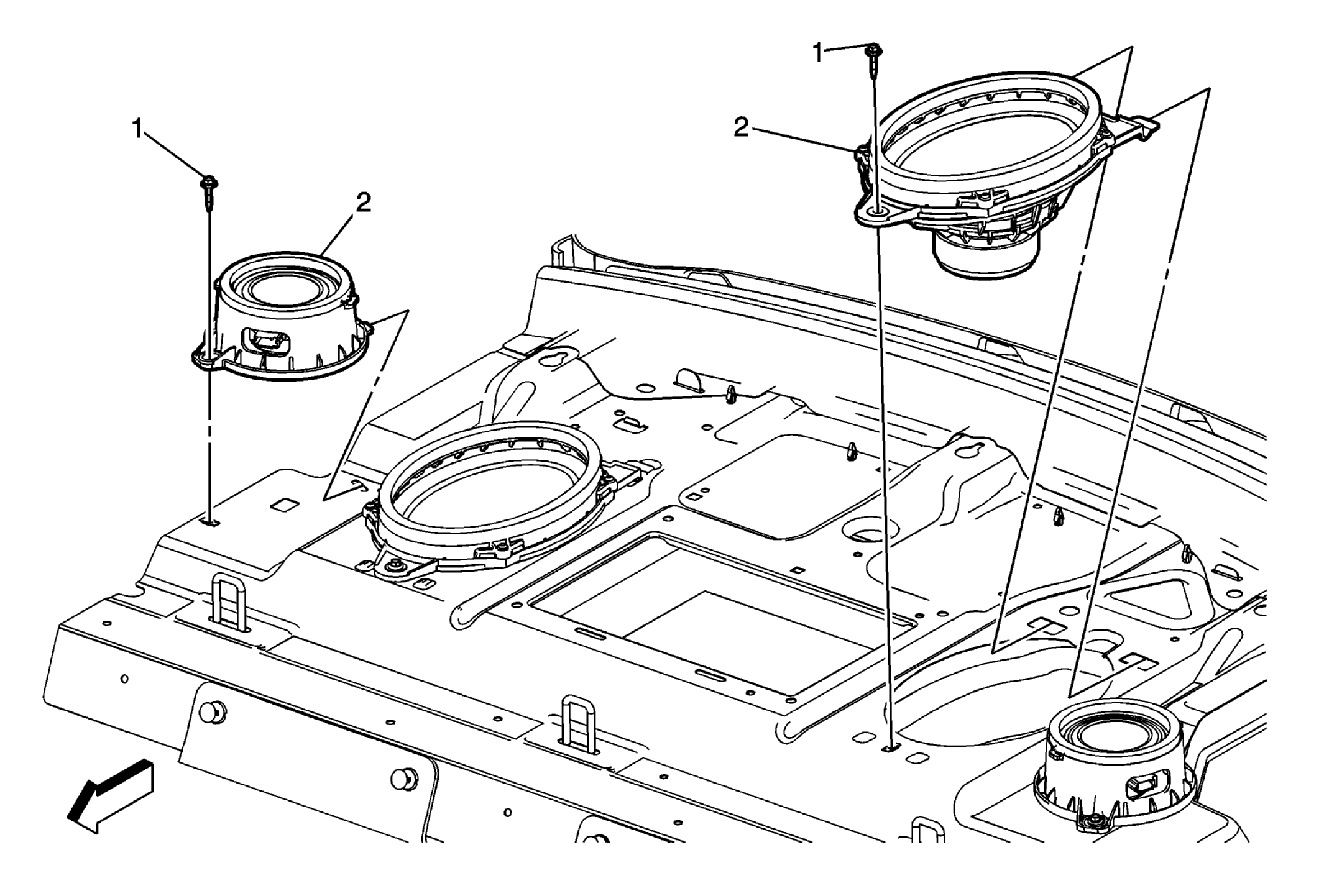

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (with DB3)Rear Window Panel Trim Replacement (without DB3) . |
|
| 1 | Radio Rear Speaker Fastener (Qty: 4) |
| 2 | Radio Rear Speaker (Qty: 4) Procedure Disconnect the electrical connectors. |
