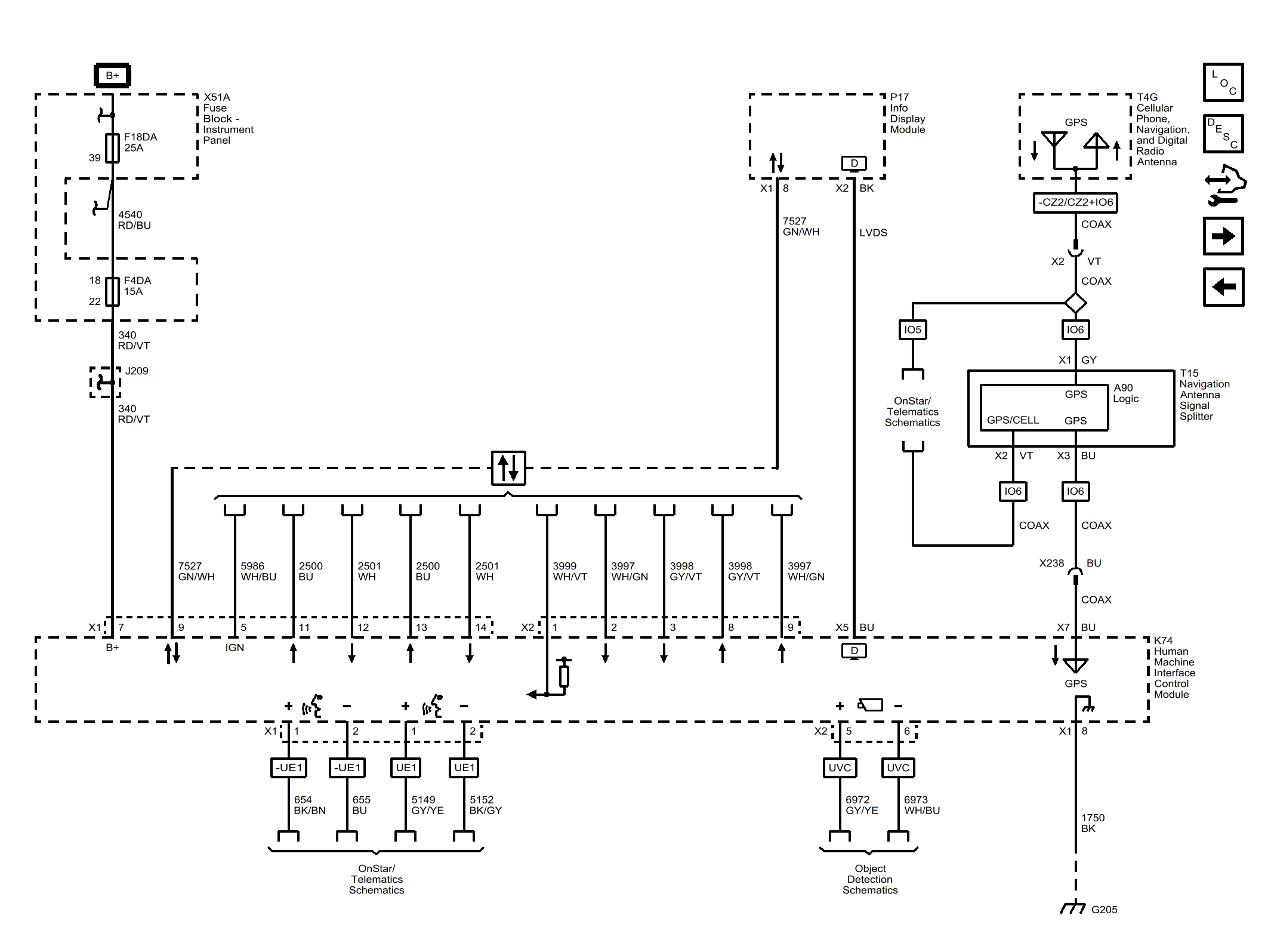

Human Machine Interface Power, Ground, Serial Data, Antenna, and Subsystem References

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.
