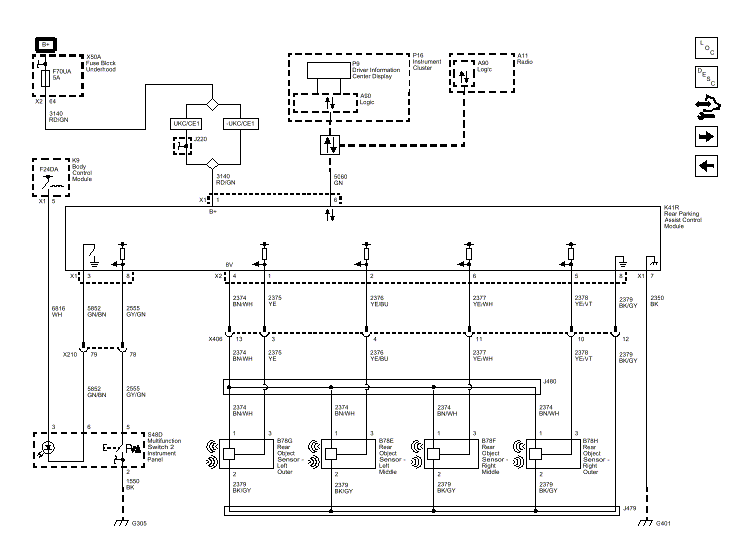

Home › Buick › 2016 › LaCrosse Base, 2.4L Eng VIN R › Repair and Diagnosis › Accessories & Equipment › Drivers Assistance Systems - ADAS › Object Detection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Rear Object Detection (UD7)
