Floor Console Components (Without CZ2)

Items
1: X80A Accessory Power Receptacle - Center Console 1 (Without CZ2) X80A Accessory Power Receptacle - Center Console 1
2: S3 Transmission Shift Lever S3 Transmission Shift Lever
3: E1AC Accent Lamp - Center Console Cupholder (TSP)
4: S5 Center Console Compartment Lamp Switch S5 Center Console Compartment Lamp Switch
5: X82 Audio/Video Input Adapter (UWG) X82 Audio/Video Input Adapter
6: X81 Accessory Power Receptacle - 110V AC (K16) X81 Accessory Power Receptacle - 110V AC X1 K16 X81 Accessory Power Receptacle - 110V AC X2 K16
7: X80B Accessory Power Receptacle - Center Console 2 (Without CZ2) X80B Accessory Power Receptacle - Center Console 2
8: X80D Accessory Power Receptacle - Center Console Compartment (Without CZ2) X80D Accessory Power Receptacle - Center Console Compartment
9: X83 Auxiliary Audio Input X83 Auxiliary Audio Input X83 Auxiliary Audio Input (KTA or USR)
10: T10K Keyless Entry Antenna - Center Console Rear (BTM and ATH) T10K Keyless Entry Antenna - Center Console Rear (CZ2)T10K Keyless Entry Antenna - Center Console Rear (-CZ2)
11: K89 Immobilizer Control Module K89 Immobilizer Control Module (BTM)K89 Immobilizer Control Module (J71)K89 Immobilizer Control Module (-BTM)
12: T1 Accessory DC/AC Power Inverter Module (KI6) T1 Accessory DC/AC Power Inverter Module
13: S48E Multifunction Switch - Center Console S48E Multifunction Switch - Center Console
14: S91 Park Brake Control Switch S91 Park Brake Control Switch
15: P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator
16: S2 Transmission Manual Shift Switch S2 Transmission Manual Shift Switch

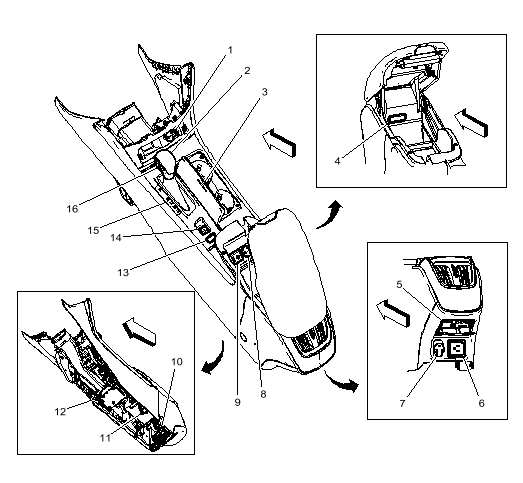

Fig 1: Floor Console Components (Without CZ2)

Courtesy of GENERAL MOTORS COMPANY
