Regal GS, AWD
›
Repair and Diagnosis
›
Accessories & Equipment
›
Drivers Assistance Systems - ADAS
›
Object Detection System
›
Schematic Wiring Diagrams
›
Object Detection Wiring Schematics
›
Rearview Camera (UVC with IO5/IO6)
Rearview Camera (UVC with IO5/IO6)

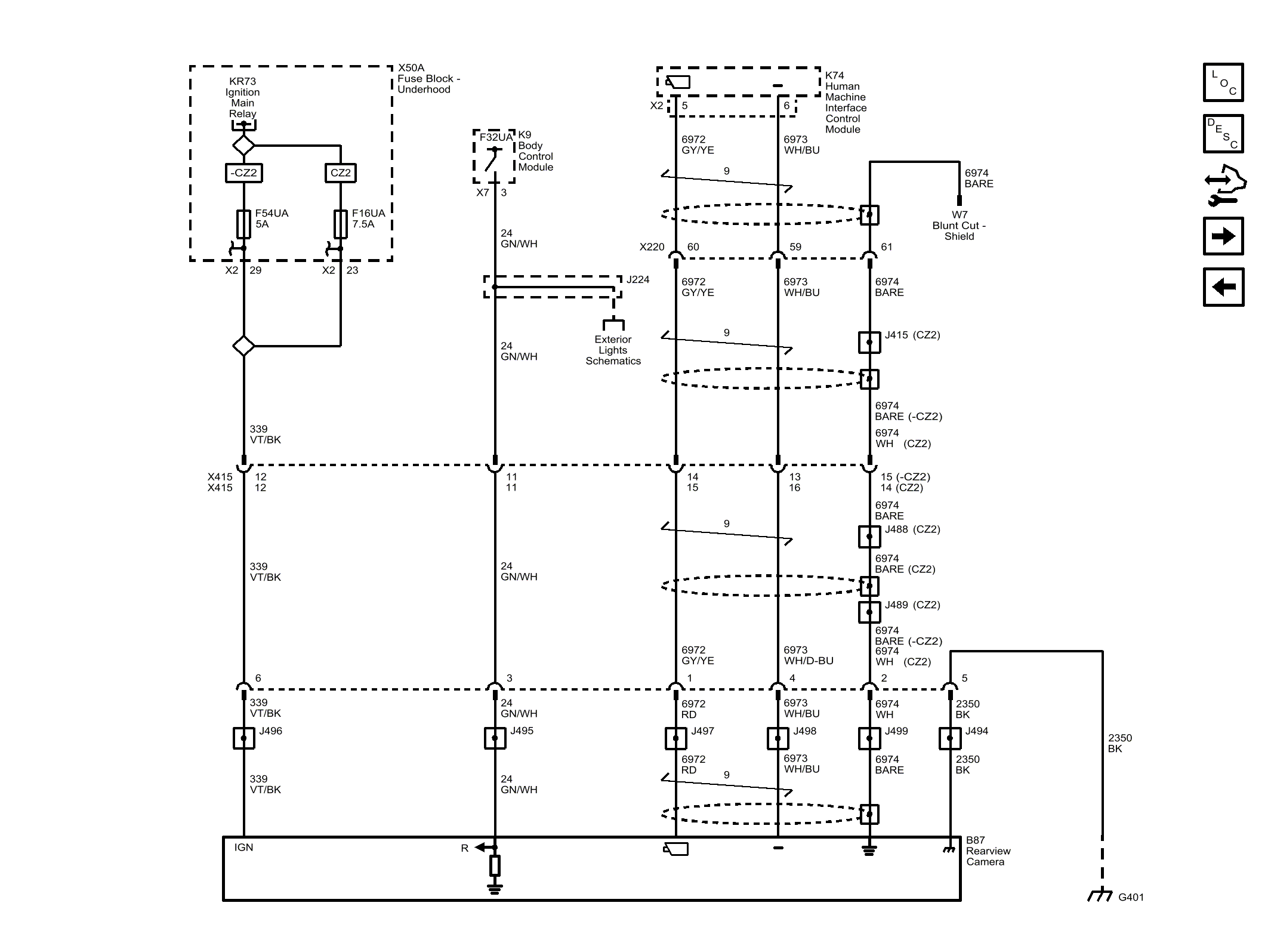

Fig 1: Rearview Camera (UVC with IO5/IO6)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
