Remote Control Door Lock Receiver Replacement (without Sunroof)

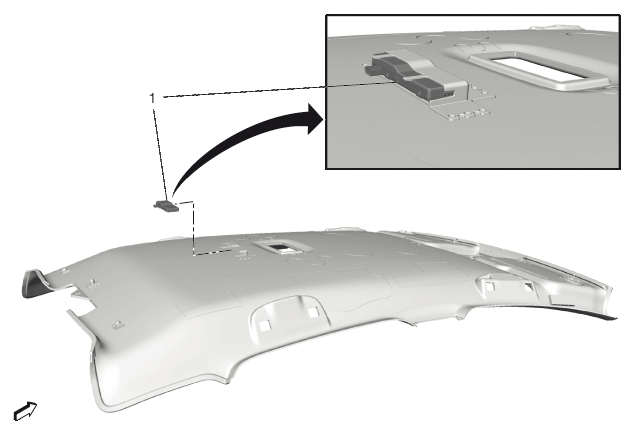

Fig 1: Remote Control Door Lock Receiver (without Sunroof)
GM3764357Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Headlining Trim Panel Replacement (with Sunroof)Headlining Trim Panel Replacement (without Sunroof)
1 Remote Control Door Lock Receiver

Procedure

  1. Disconnect the electrical connector.
  2. Loosen the retaining tabs and remove from bracket.
