Linear Interconnect Network (LIN)

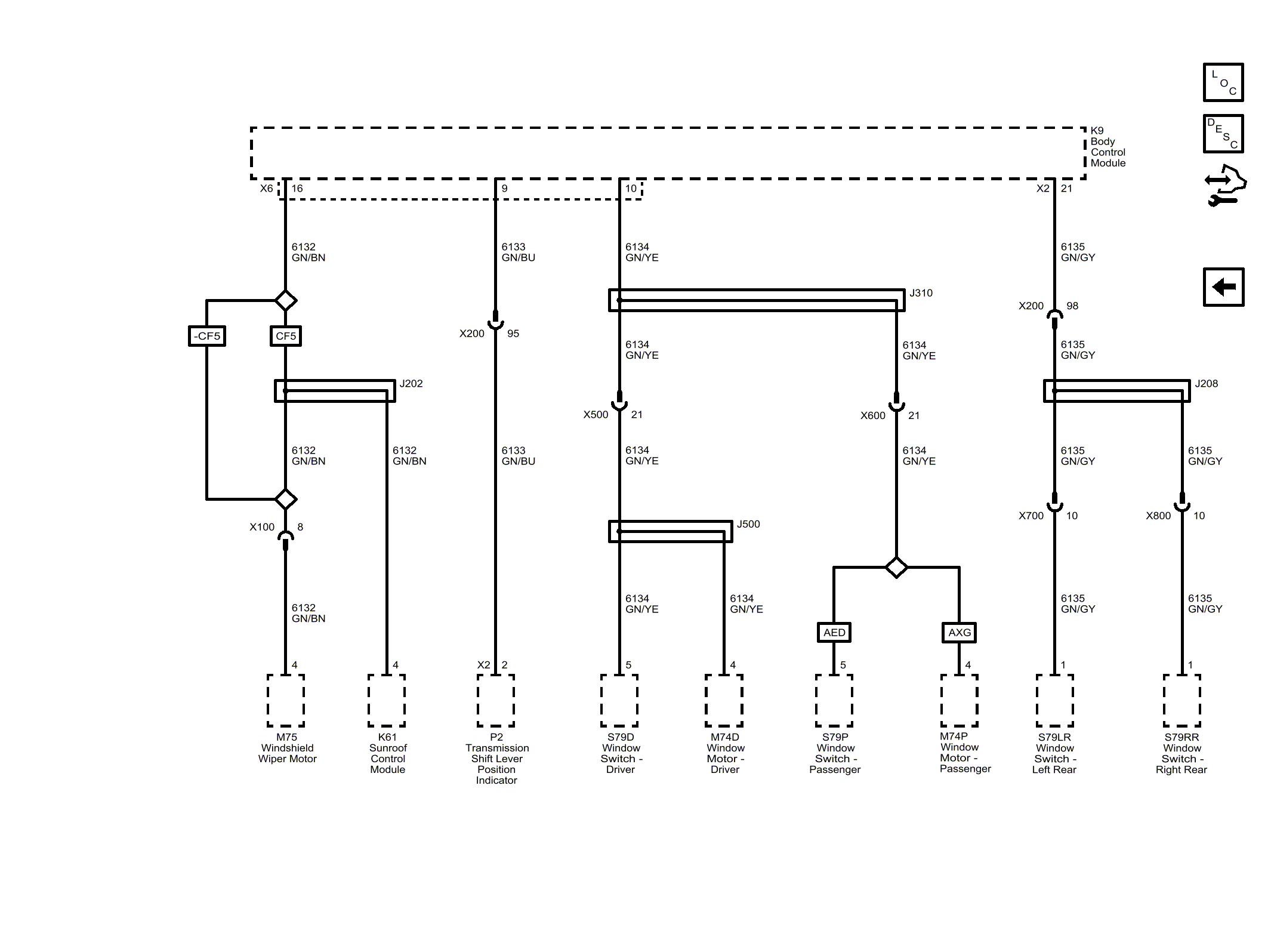

Fig 1: Linear Interconnect Network (LIN)
GM4082642Courtesy of GENERAL MOTORS COMPANY
