Serial Data Communication Enable
Serial Data Communication Enable

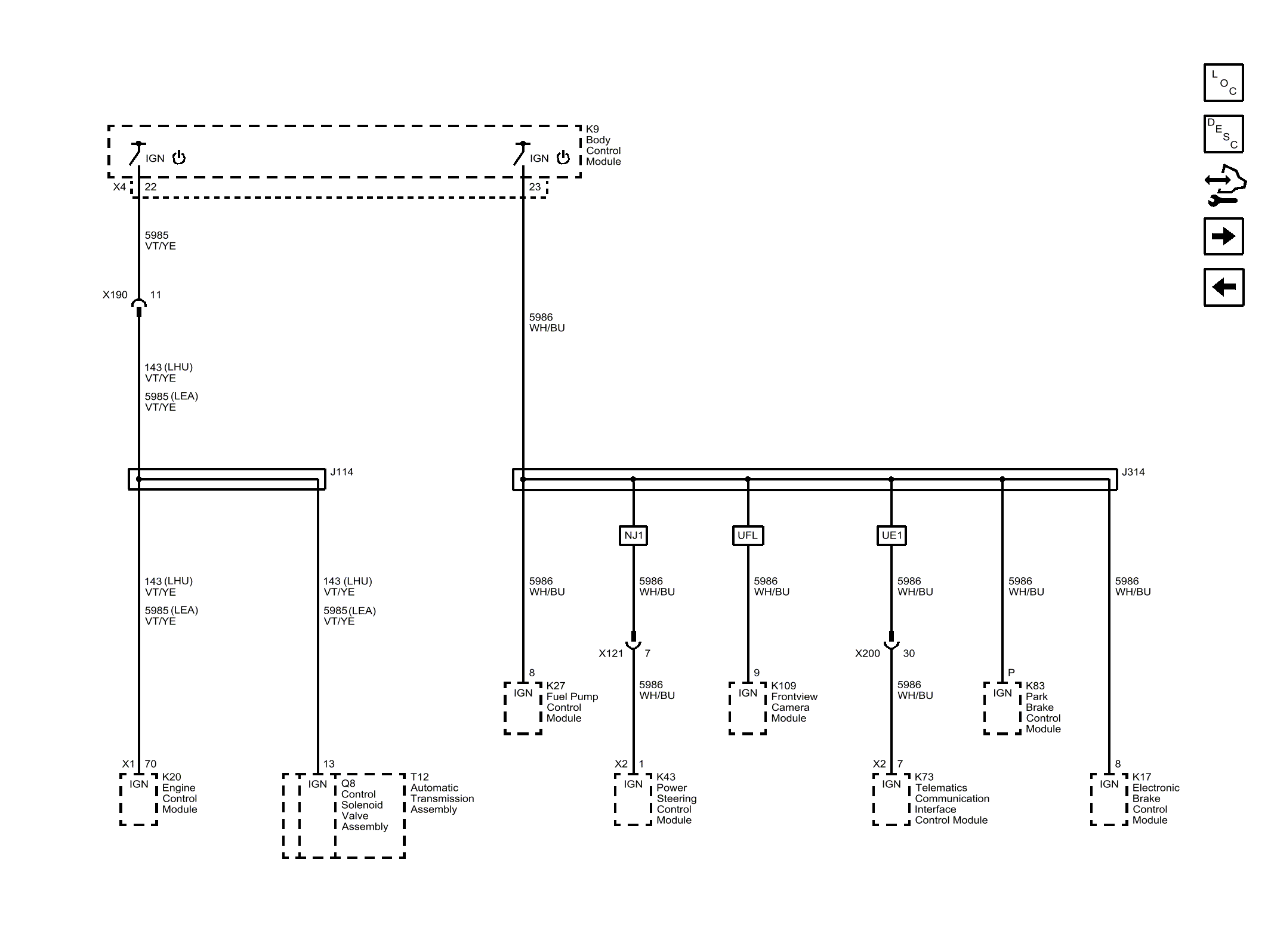

Fig 1: Serial Data Communication Enable
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
