Airbag Front Passenger Presence Module Replacement

WARNING: This page is about a different car, the 2015 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

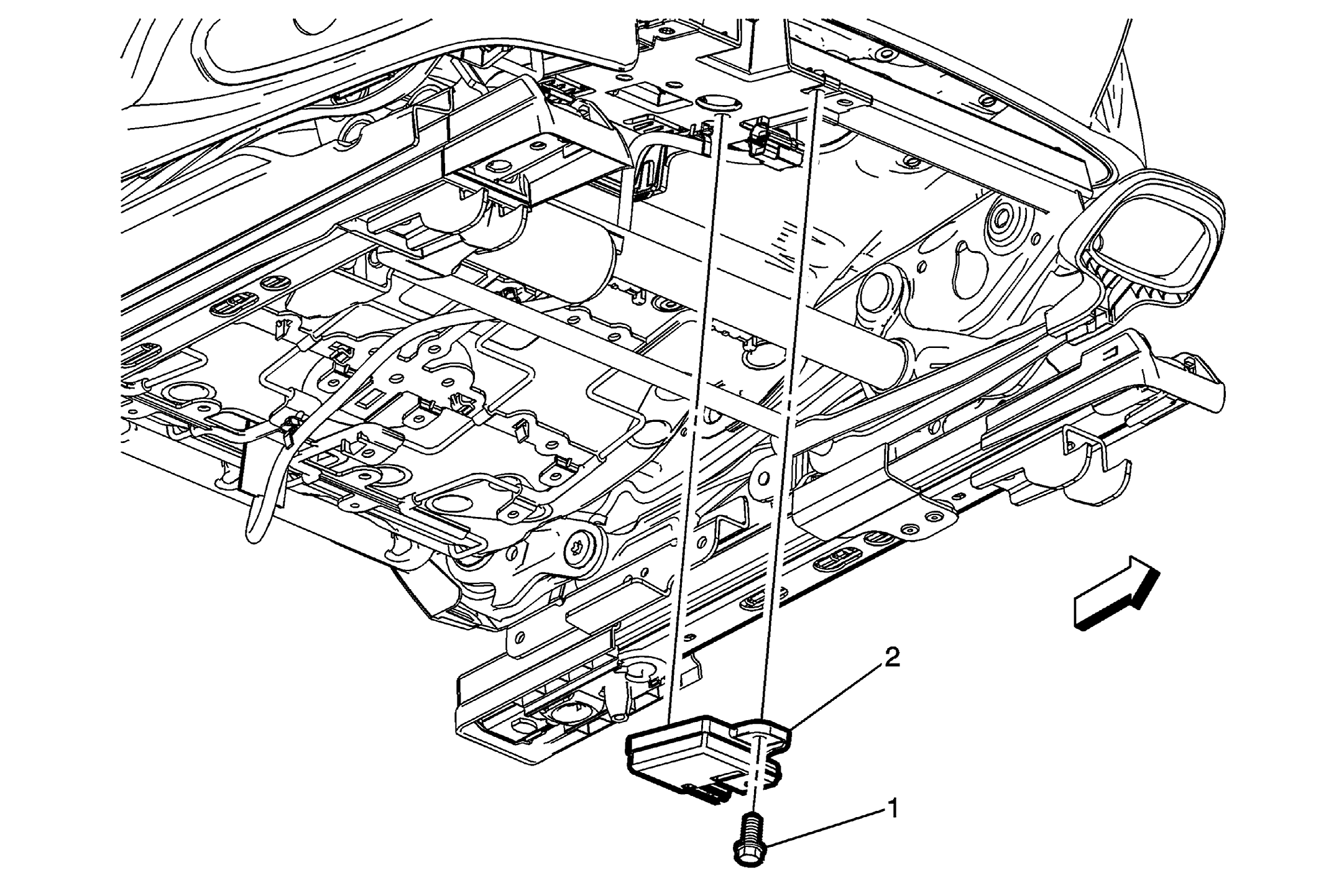

Fig 1: Airbag Front Passenger Presence Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Position the front seat to allow access to the inflatable restraint front passenger presence module and fasteners.
1	Inflatable Restraint Front Passenger Presence Module Fastener CAUTION: Refer to Fastener Caution .
2	Inflatable Restraint Front Passenger Presence Module Procedure Disconnect the electrical connectors. Remove the module from the wiring harness bracket. Refer to Control Module References for programing and setup information.

Callout

Component Name

Preliminary Procedure
Position the front seat to allow access to the inflatable restraint front passenger presence module and fasteners.

Inflatable Restraint Front Passenger Presence Module Fastener

CAUTION:

Refer to Fastener Caution .

Inflatable Restraint Front Passenger Presence Module

Procedure

Disconnect the electrical connectors.
Remove the module from the wiring harness bracket.
Refer to Control Module References for programing and setup information.
