Multimedia Player Interface (KTA)

WARNING: This page is about a different car, the 2015 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

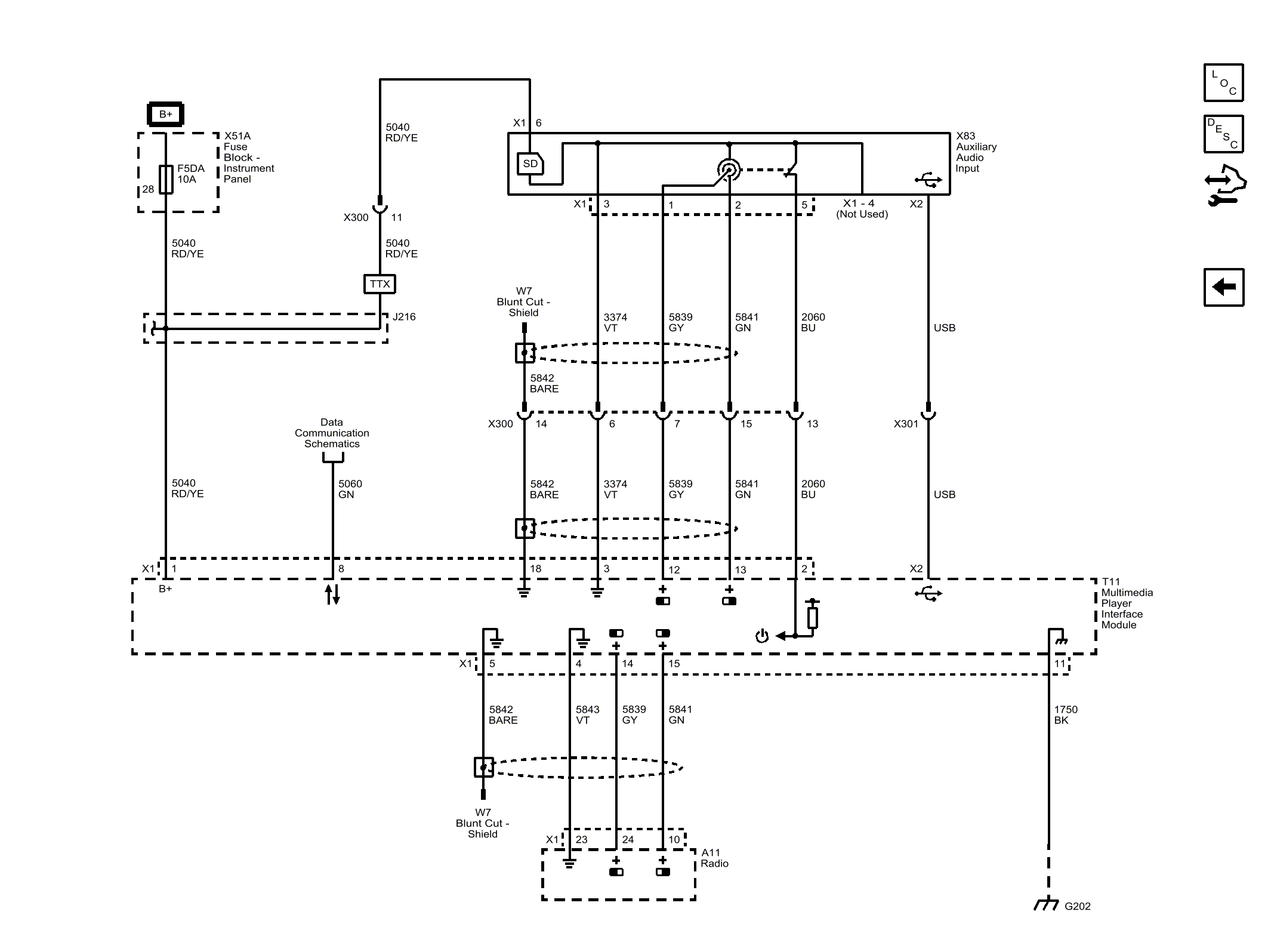

Fig 1: Multimedia Player Interface (KTA)
GM3802015Courtesy of GENERAL MOTORS COMPANY
