Quarter Window Regulator Motor Replacement

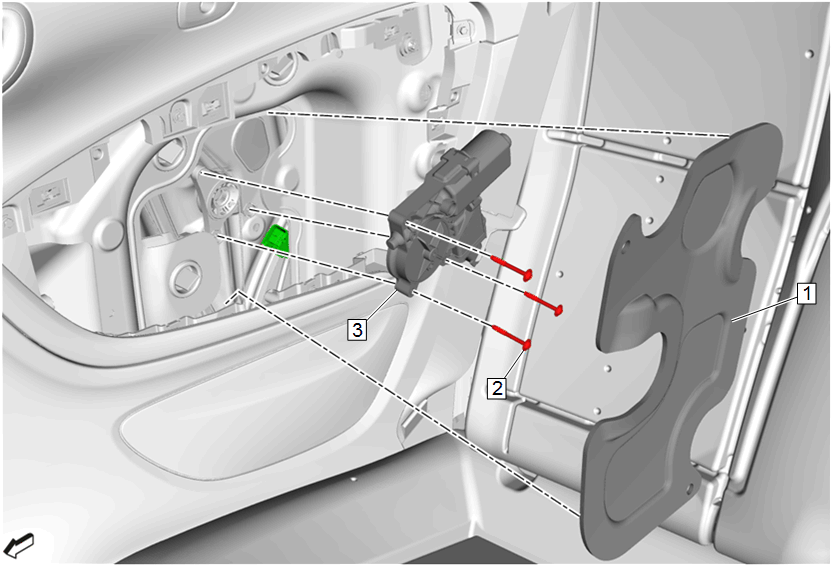

| Callout | Component Name |
|---|---|
| Preliminary Procedure Body Side Front Lower Trim Panel - Remove - Body Side Front Lower Trim Panel Replacement . |
|
| 1 | Front Side Door Upper Rear Water Deflector Procedure Pull back the top portion of the water deflector. |
| 2 | Quarter Window Regulator Motor Bolt [3x]
CAUTION:
Tighten 3.8N.m (34 lb in) |
| 3 | Quarter Window Regulator Motor Procedure Disconnect the electrical connector. |
