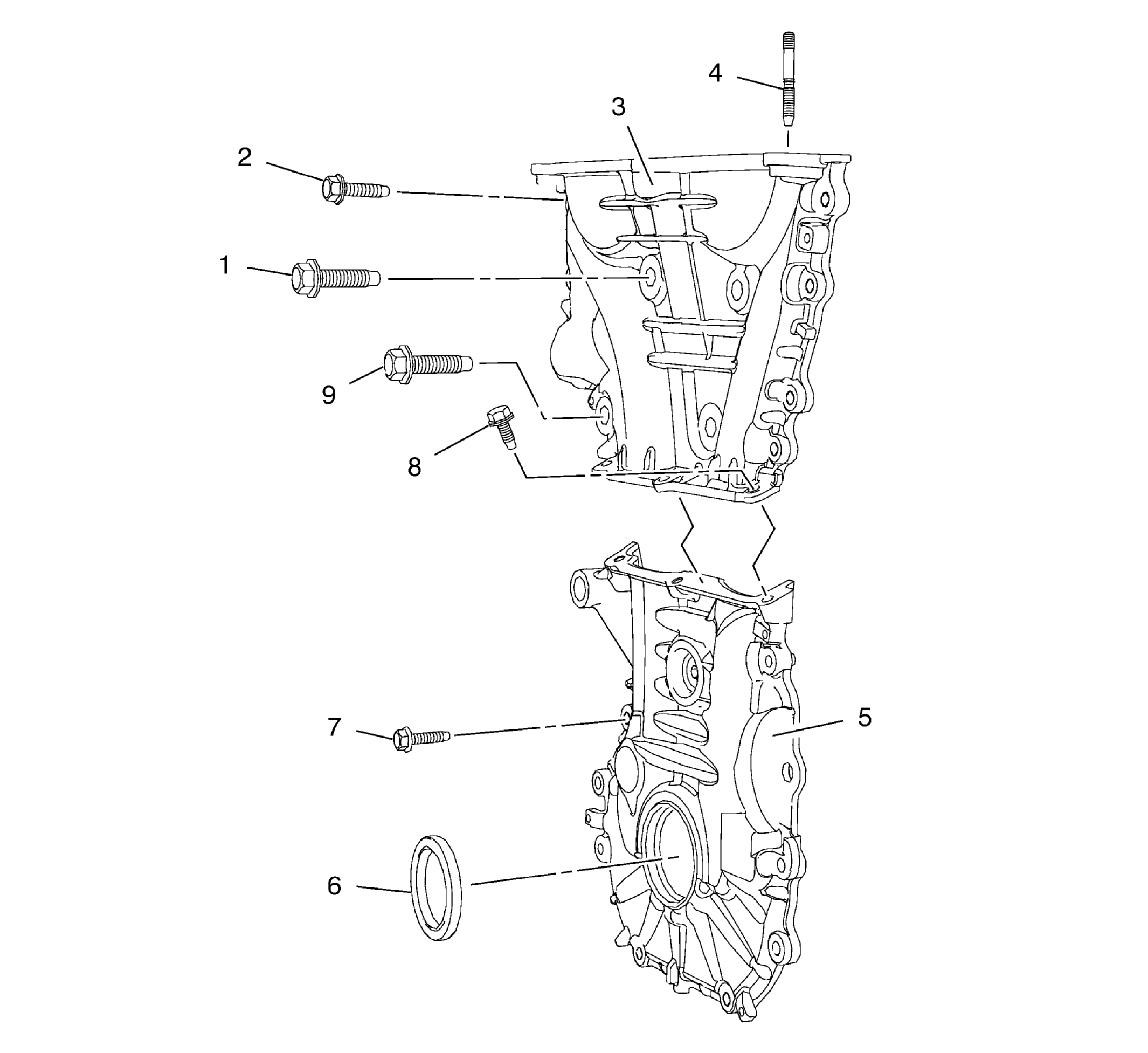

Engine Front Cover
| Callout | Component Name |
|---|---|
| 1 | Engine Mount Bracket Bolt (M10) |
| 2 | Upper Engine Front Cover Bolt (M6) |
| 3 | Upper Engine Front Cover |
| 4 | Upper Engine Front Cover Double Ended Stud |
| 5 | Lower Engine Front Cover |
| 6 | Crankshaft Front Oil Seal |
| 7 | Lower Engine Front Cover Bolt (M6) |
| 8 | Engine Front Cover Bolt (M6) |
| 9 | Engine Mount Bracket Bolt (M10) or Upper Engine Front Cover Slave Bolt (M10) |
