Local Interconnect Network (LIN) Bus 6 and 7

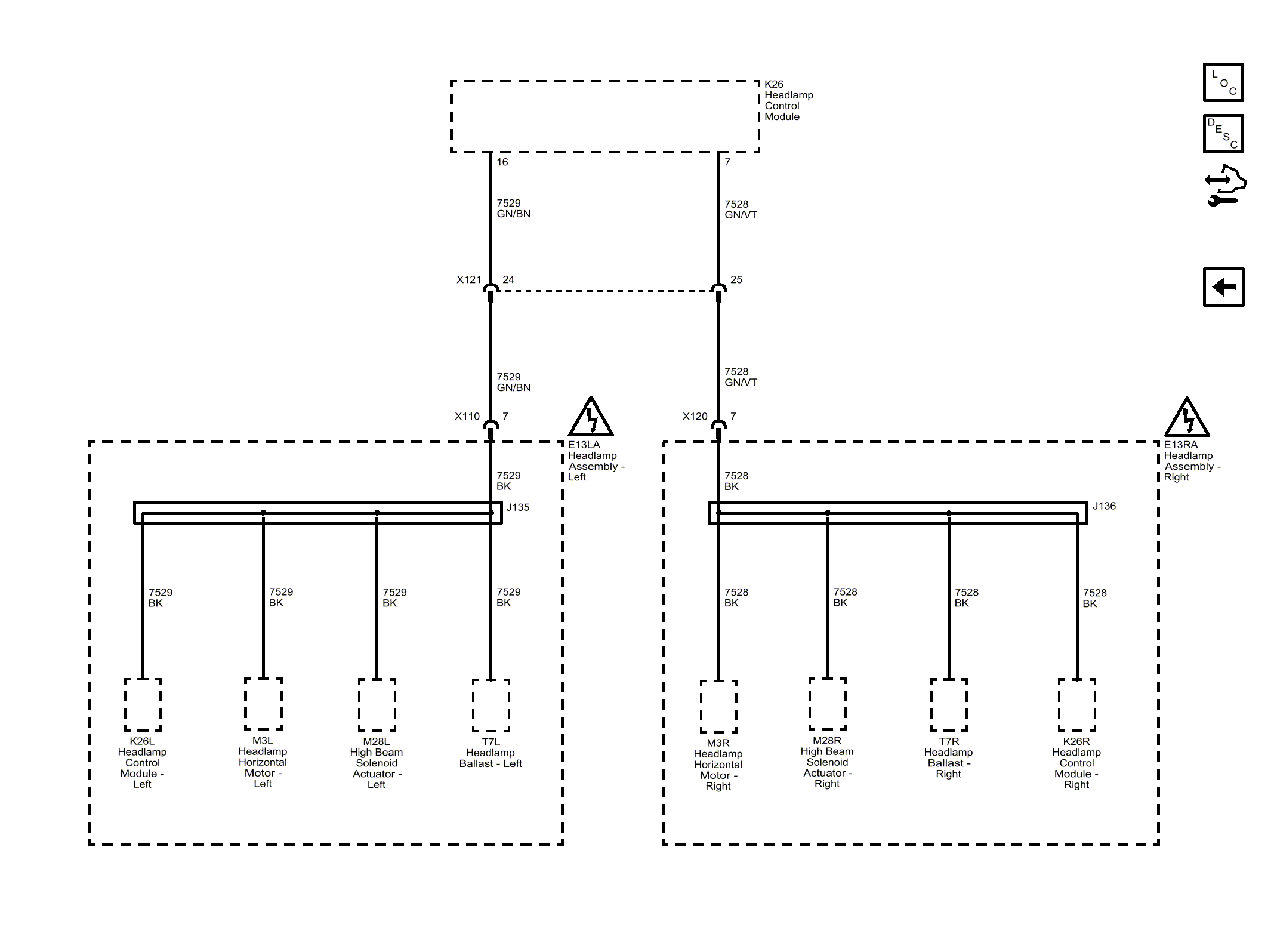

Local Interconnect Network (LIN) Bus 6 and 7
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
