Rearview Camera (Buick with UVC)

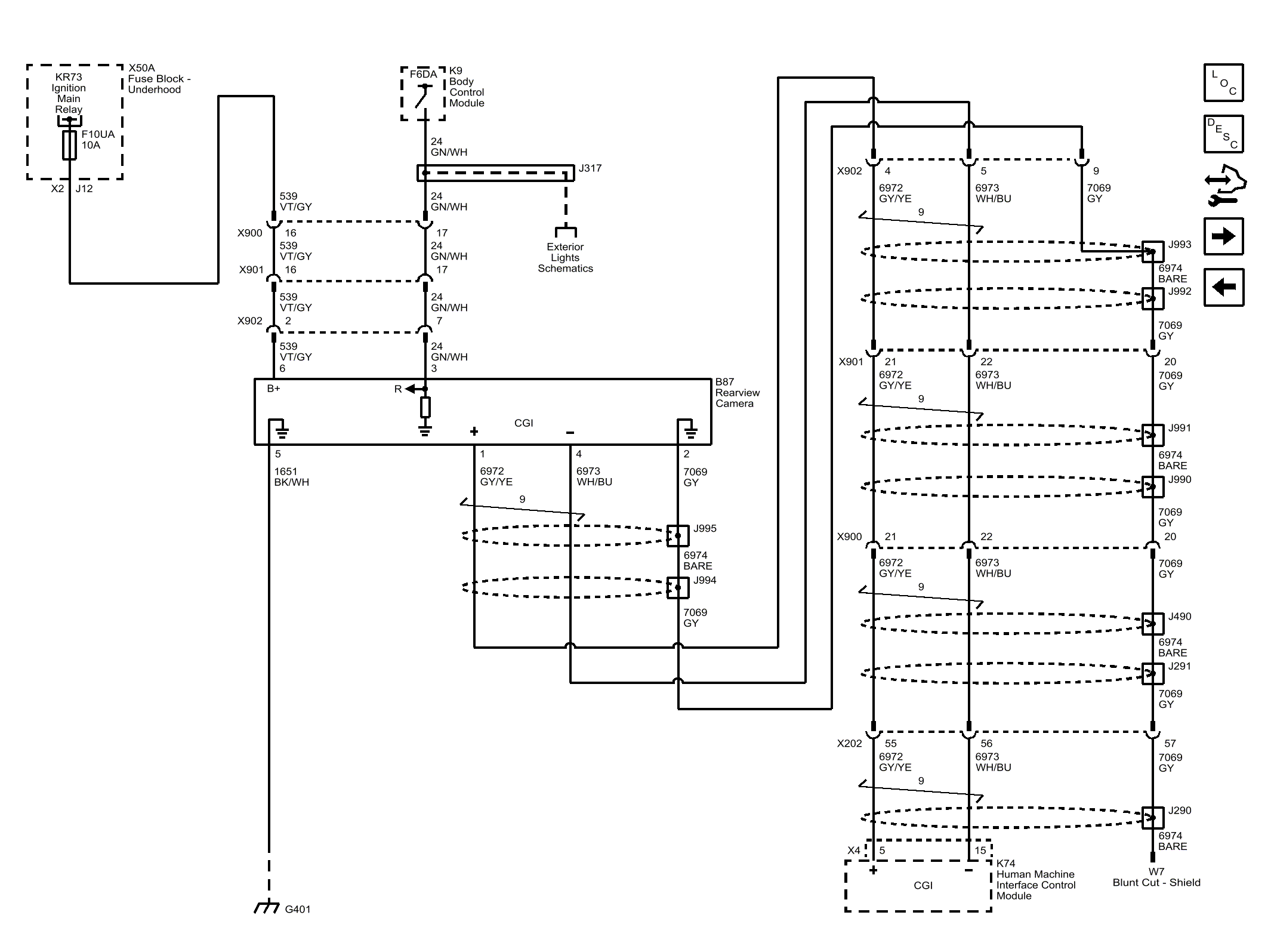

Fig 1: Rearview Camera (Buick with UVC)
GM4377432Courtesy of GENERAL MOTORS COMPANY
