Object Detection Wiring Schematics (Buick)
›
Side Object Detection (Buick with UFT)
Side Object Detection (Buick with UFT)

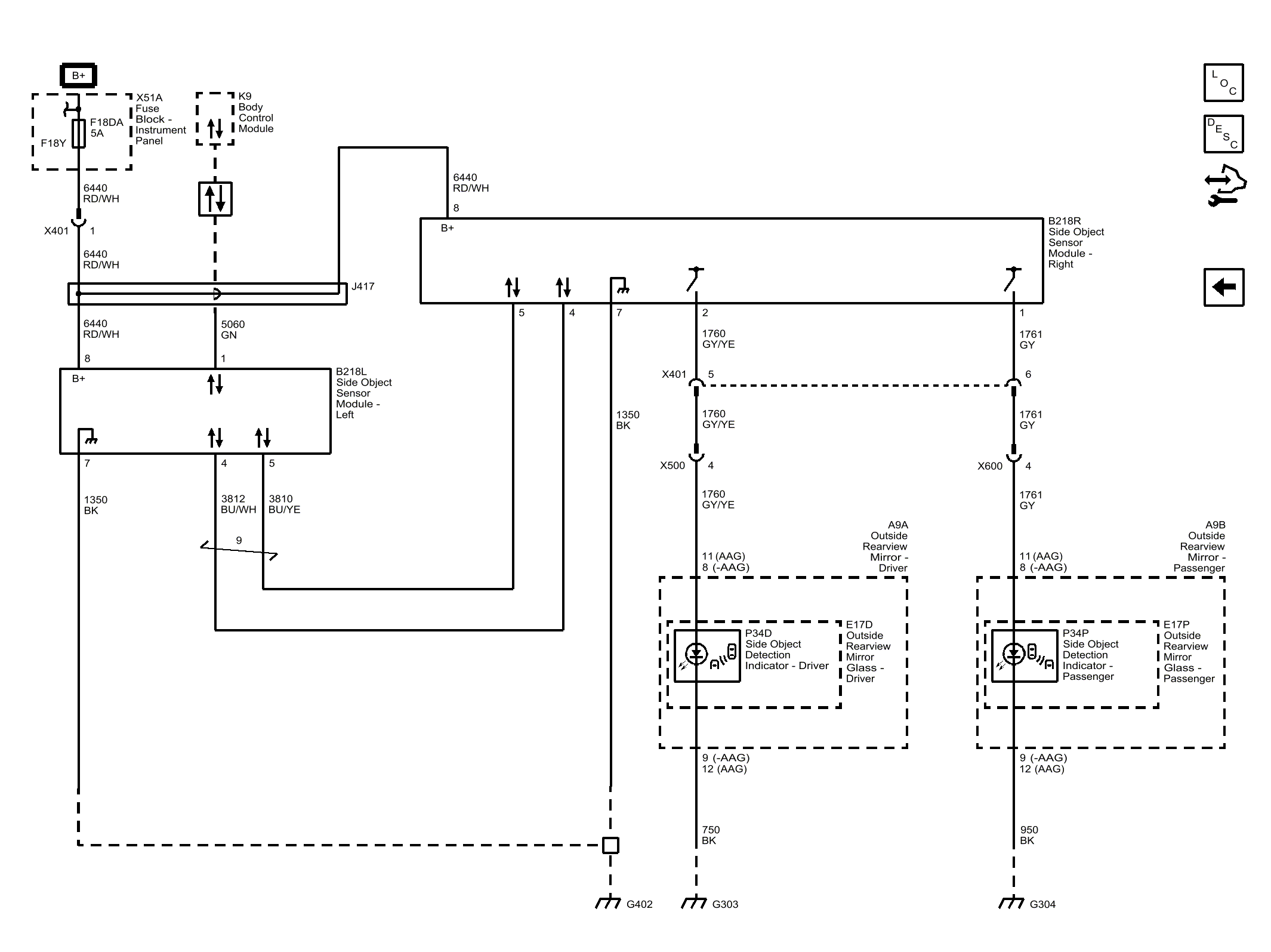

Fig 1: Side Object Detection (Buick with UFT)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
