Radio Antenna Base Replacement

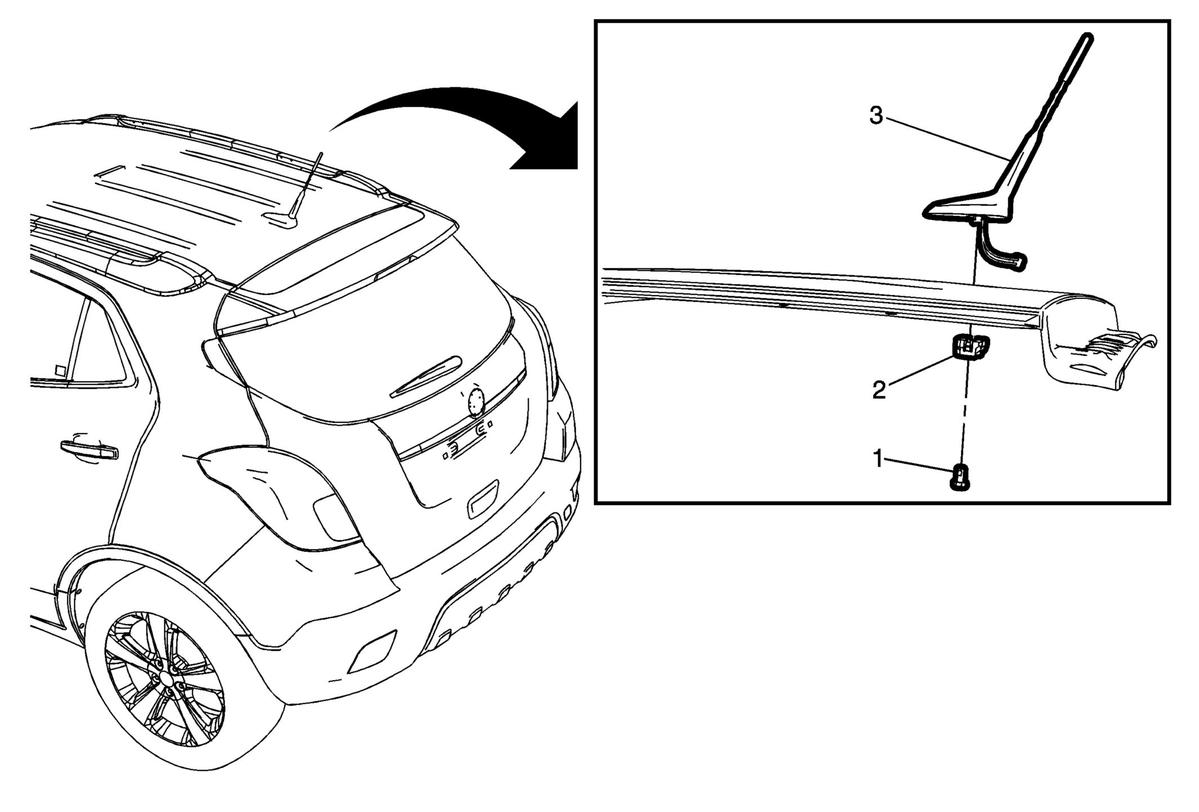

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lower the rear of the headlining trim panel. Refer to Headlining Trim Panel Replacement (Without Sunroof, Buick)Headlining Trim Panel Replacement (With Sunroof, Buick)Headlining Trim Panel Replacement (With Sunroof, Chevrolet)Headlining Trim Panel Replacement (Without Sunroof, Chevrolet) . |
|
| 1 | Radio Antenna Base Fastener
CAUTION:
Refer to Fastener Caution .
NOTE:
Discard the retainer and replace with a new retainer. Tighten 9 N.m (80 lb in) |
| 2 | Radio Antenna Base Retainer |
| 3 | Radio Antenna Base Assembly Procedure Disconnect the electrical connector. |
