Telematics Communication Interface Control Module (Buick)
Telematics Communication Interface Control Module (Buick)

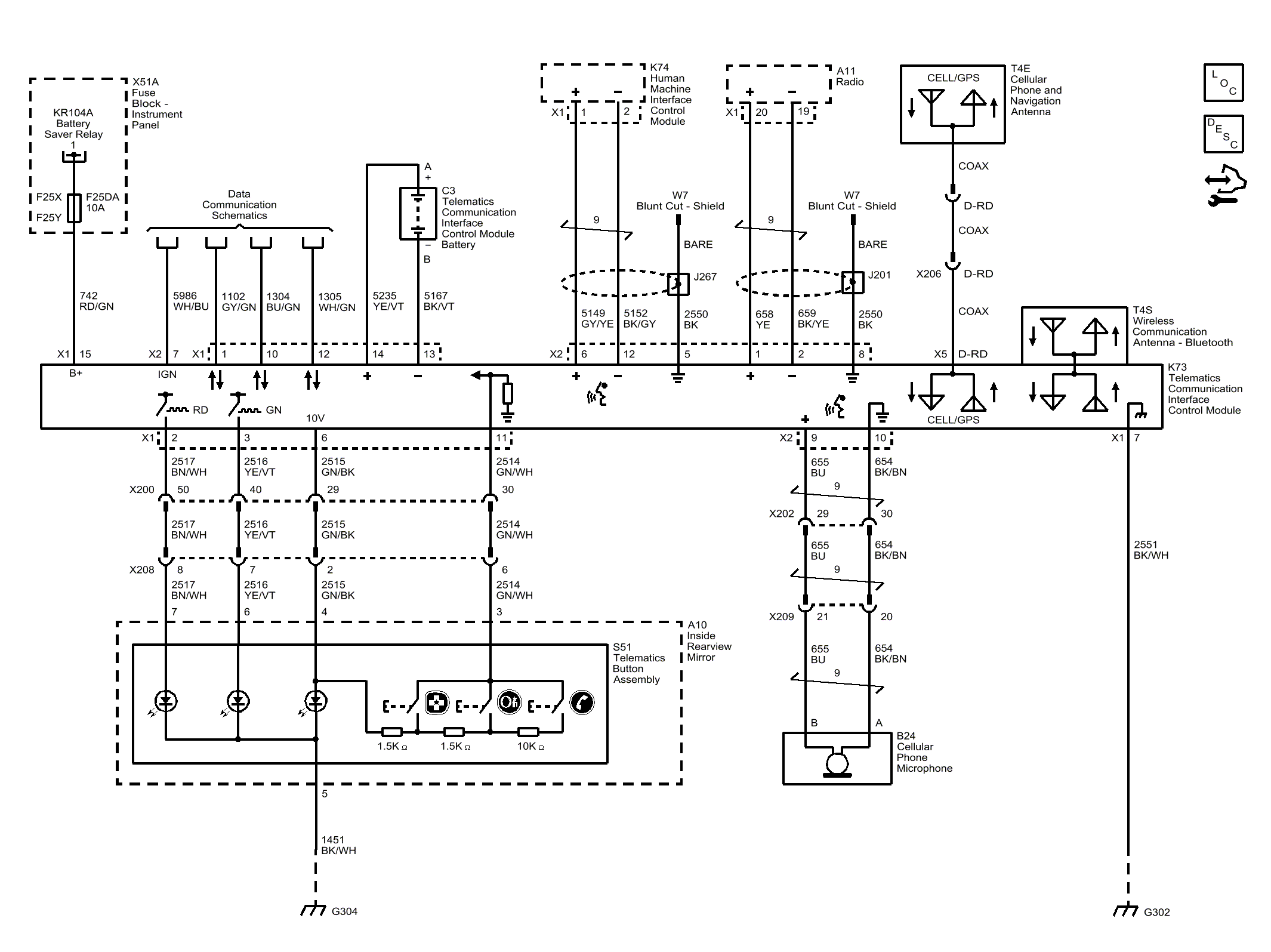

Fig 1: Telematics Communication Interface Control Module (Buick)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
